PRODUCT

Diesel Generator Complex Parallel Gen-set Controller IG-NTC GC

Product ID : IG-NTC GC

Product Tags : Auto Genset Generator Controller Electronic Auto Start Generator Set Generator ATS Controller Generator Spare Parts Generator Speed Controller Generator parts speed control unit Intelligent Generator Controller Automatic Remote Monitor ATS AMF Generator controller Smart Genset Controller electronic engine governor control

Product Description

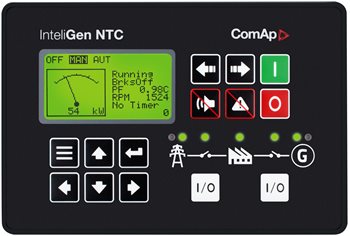

The InteliGen NTC, an enhanced version of ComAp’s bestseller – InteliGen NT, is a high-end controller suitable for any complex single or multiple gen-sets paralleling application operating in standby or island mode. It is a perfect unit for mission-critical installations such as datacenters, power stations or rental applications. InteliGen NTC features ComAp’s powerful in-built PLC delivering high-level of flexibility, advanced history log and fully configurable protections.

Marine certified controller. Overview of ComAp marine approved products available here.

Gen-set controller for single or multiple generating sets operating in standby or parallel modes
Support of engines with ECU (Electronic Control Unit)
Many communication options – easy remote supervising and servicing
To be used inde npendently or in conjunction with detachable / external colour displays InteliVision 5, InteliVision 8, InteliVision 12Touch, or InteliVision 18Touch
Gen-set performance log for easy problem tracing
Automatic synchronizing and power control (via speed governor or ECU)
AMF function, Baseload, Import / Export, Peak shaving, Voltage and PF control (AVR)
Generator measurement, Mains measurement
Inputs and outputs configurable for various customer needs
Controller redundancy
Event-based history (up to 500 records) with customer-selectable list of stored values; RTC; statistic values
Integrated PLC programmable functions
Integrated fixed and configurable protections
Selectable measurement ranges for AC voltages and currents – 120 / 277 V, 0–1 / 0–5 A
Secondary isolated RS232 / RS485 interface
Support of external colour displays
USB 2.0 slave interface
With Solution of Application support - manage up to 992 Gen-sets in Extended Multiple Gen-set Application (Bank Controller)

GeCon functionality is included in IGS NT Standard Firmware version 3.9 and newer!

Order instruction: To run the GeCon software you need to order InteliGen NT, and then install the correct GeCon software:

GeCon LandBased (included in standard firmware)
GeCon Marine (special dedicated firmware)

IGS-NT-LSM+PMS dongle is required for Loadsharing and PowerManagement.
