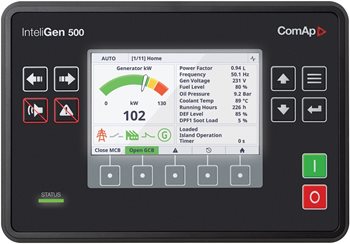

Advanced paralleling gen-set controller with 5” color display InteliGen 500
Product ID : InteliGen 500
Product Tags :
Auto Genset Generator ControllerElectronic Auto Start Generator SetGenerator ATS ControllerGenerator Spare PartsGenerator Speed ControllerGenerator parts speed control unitIntelligent Generator Controller AutomaticRemote Monitor ATS AMF Generator controllerSmart Genset Controllerelectronic engine governor control
Product Description
- Synchronising - Optimize your gen-set usage or parallel different sizes and brands of generators
- PLC - Utilise our unique, and easy to use PLC drag-and-drop blocks for configuration.
- New design - Flexibility to change the application e.g. SPtM and MINT.
- Built in AVRi - You no longer need a separate AVRi interface in your installation.
- Plug-in modules - Customize your controller with our plug-in extension and communication modules.
- 4G/LTE - Connect to your gen-set via 4G/LTE for alerts or use ComAp's WebSupervisor.
- GPS - Always know the location of your gen-set using geofencing for theft or movement alerts.
- InteliConfig - Our new configuration and monitoring PC tool (based on new LiteEdit) will offer you multi gen-set control and monitoring as well as easy set-up.
InteliGen 500 is further offering:
- 5" TFT with 800x480 px resolution
- All important information available on well arranged measuring screens
- Easy parameters setting
- On-screen trends
- Easy switching between parallel to mains or multiple genset applications
- Multiple gensets in parallel to mains available together with InteliMains 210 controller
- Two types of synchronisations: Phase Match or Slip Synchro
- Two types of Load/VAr Sharing: Isochronous (CAN) or Droop, including Emergency Droop
- Direct communication with EFI engines including Tier 4 Final support
- Total remote monitoring and control
- InteliConfig for configuration, single genset and multi genset/site monitoring
- WinScope for precise tuning of PID regulators exactly according to gen-set type and application needs
- WebSupervisor for cloud based monitoring and control of your whole gen-set fleet
- Wide range of communication and connection capabilities including:
- USB, CAN, RS485 and Ethernet on board
- USB master for configuration or firmware upload or download
- RS232 and additional RS485 via plug-in module
- Internet access by using of inbuilt Ethernet or GPRS/3G/4G via plug-in modules
- Configurable Modbus RTU or TCP and support of SNMP v2
- Internal PLC support with PLC editor and monitor included in InteliConfig
- Active SMS and emails in different languages
- Geofencing and tracking via WebSupervisor
- 2 x 10 A binary outputs for cranking and fuel solenoid, powered by separated E-Stop input
- 4x switchable analog inputs (R/U/I)
- Option for additional inputs/outputs
- Flexible event based history with up to 500 events
- Load shedding, dummy load capability
- Comprehensive gen-set protections
- Multipurpose flexible timers
- UL listed
Why Choose Us
1. The company has a young business team, which is very efficient.
2. We have stable supplier resources, which can guarantee delivery without any delay.
3. We can flexibly receive small orders.
4. We have a special person in charge of special customers to ensure that customers get exclusive services.

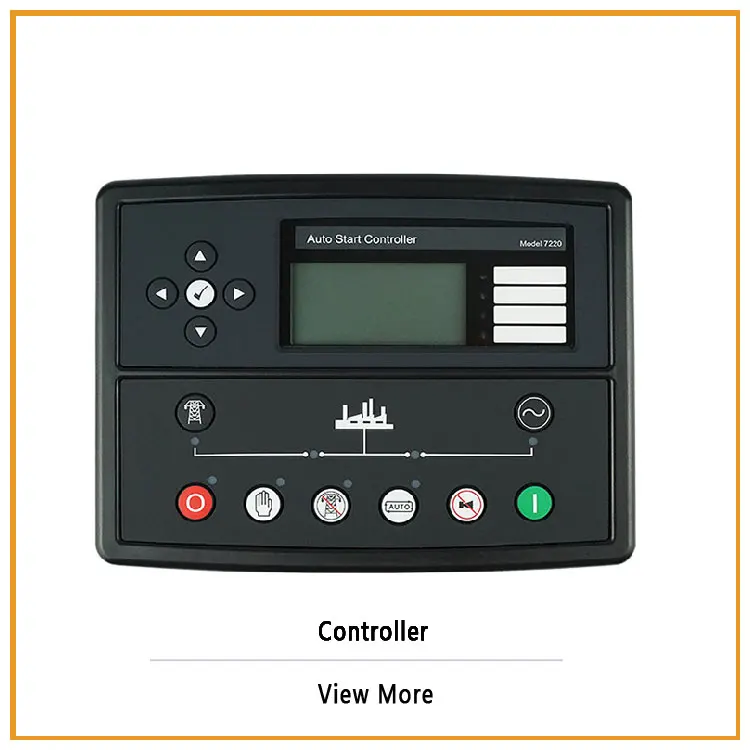

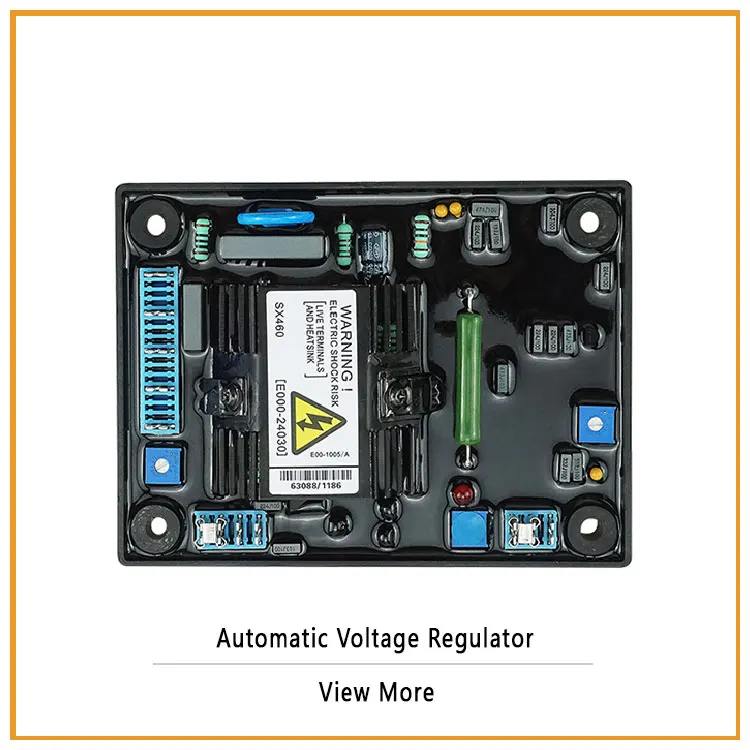

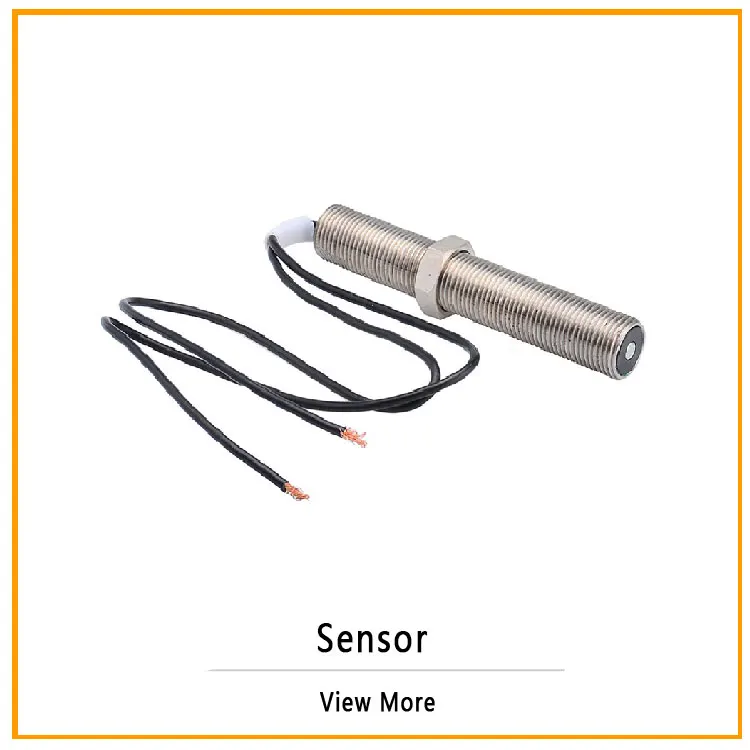

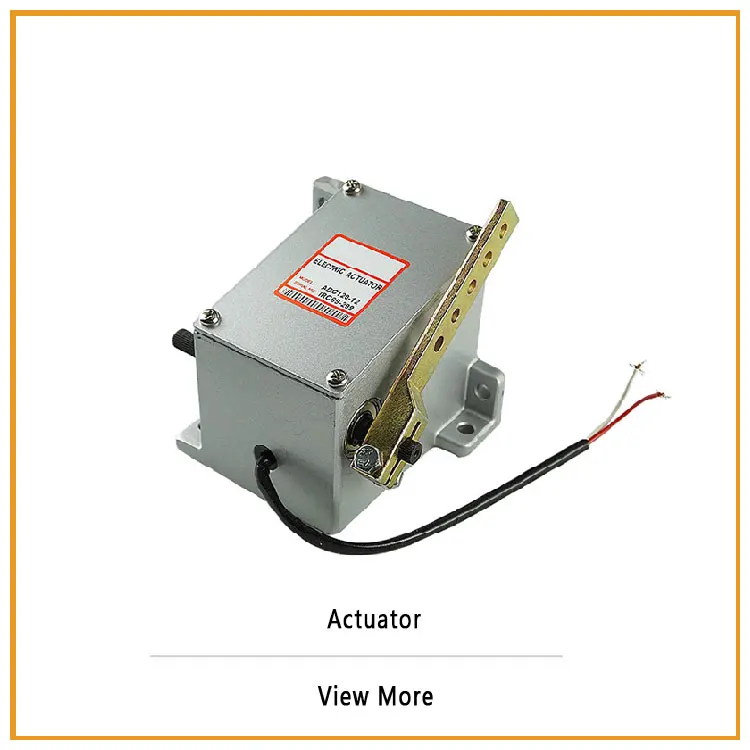

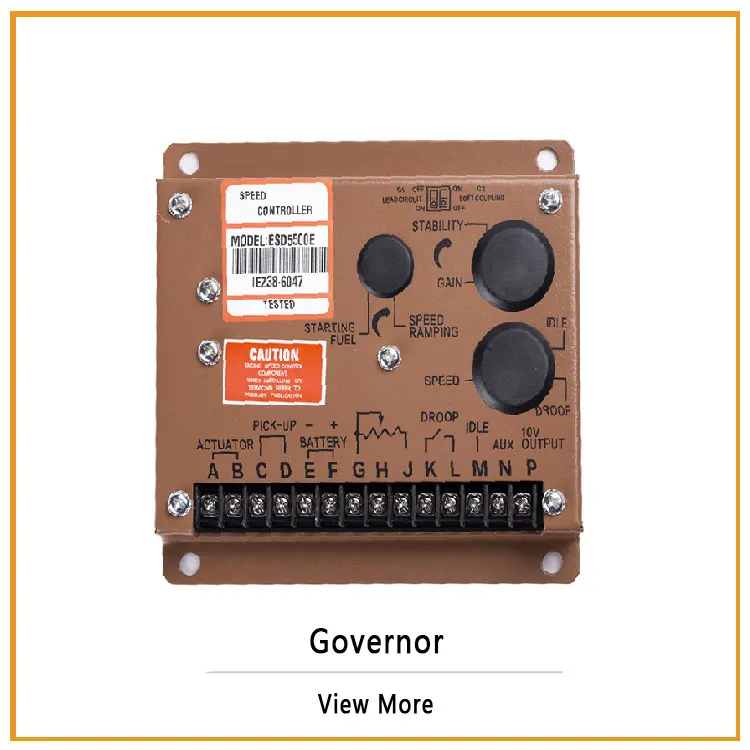

More Products
