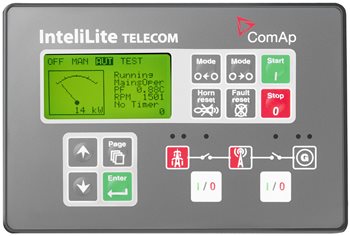

Generator parts controller Intelite Telecom DC IL-NT TLC

The InteliLite Telecom is the perfect genset controller designed specifically for needs of Mobile operators and Tower companies. To comply with demands of modern Telecommunication environment, the controller has been equipped with ComAp’s unique remote communication capabilities and rich portfolio of OPEX saving capacities. Beside typical AMF function, the controller incorporates complex battery charging management features, which enable BTS operators to start and stop the generating-set based on status of the backup battery. In such a case, the InteliLite Telecom controller can deliver significant cost savings as the generating-set is used to charge the battery, which consequently powers the load – this is called a cycling operation.

Beside functions related to battery charging management, the controller also contains other important features for BTS applications, like fuel measurement, air conditioning control, statistics for OPEX evaluation and predictive maintenance, support of telecom standard protocols (e.g. SNMP), and many more, some of which are mentioned below.

Smart battery charging and cycling management for lower OPEX

WebSupervisor and AirGate support*

Automatic SMS on alarm or event & genset control over SMS*

On-line control and monitoring over web pages (embedded web server) via plug & play IB-Lite

Optional GSM/GPRS modem/wireless Internet via IL-NT GPRS

Fuel theft protection and Total fuel consumption monitoring

Air-conditioning control

Full gen-set monitoring and protection

Outstanding EFI engine support with diagnostic messages in plain text via J1939

Detailed RTC event and performance log

Multiple languages (user changeable) in controller, even more in installation suite

Plug-in and CAN bus extension modules capability

Earth fault current protection*

A/B start battery support

Alternative switchable configuration

Dual mutual stand-by (Dual AMF) support

Supports prime power (MRS) applications including the telecommunication battery charging and cycling management

Automatic and manual GCB and MCB control

Magnetic pickup input

D+ preexcitation terminal

Measuring of the telecommunication battery up to +/-70 V DC (Order code IL2TLCXXAAA needed)

True RMS measurement

SNMP protocol support*

3 phase power measurement of gen-set and mains incl. kWh

3 configurable analog inputs

7 binary inputs

7 binary outputs
