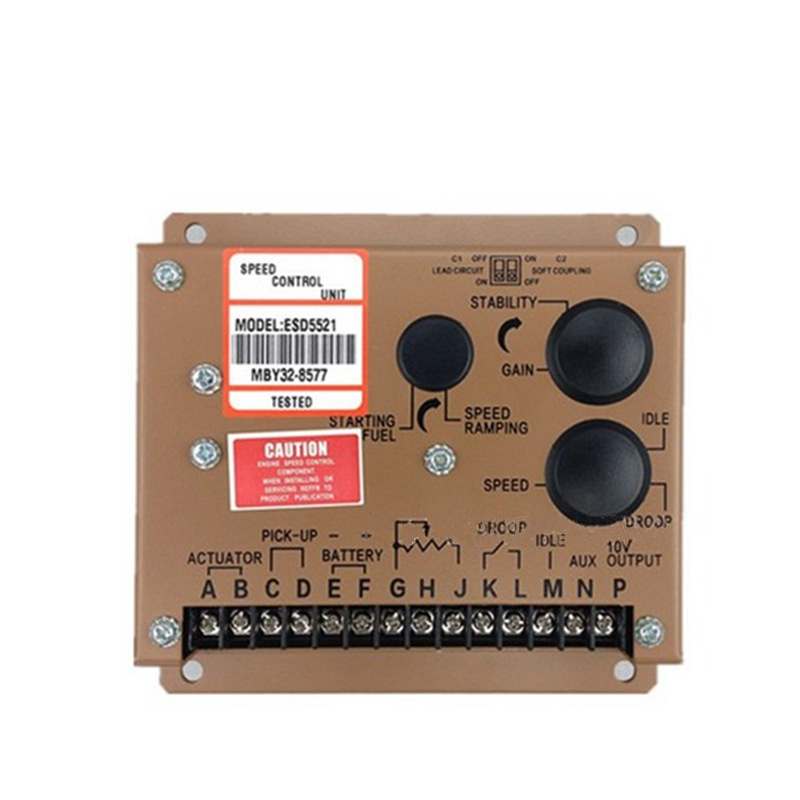

Generator Spare Parts Speed Controller Unit Governor Speed Control Board ESD5521
Electronic Speed Controller ESD5521E ESD Control Panel is rugged enough to be placed in a control cabinet or engine mounted encosure with other dedicated control equipment. If water, mist or condensation may come in contact with controller, it should be mounted certically. This will allow the fluid to drain away from the speed control unit.
Isochronous Operation/Steady State Stability: ±0.25% or better
Speed Range/Governor: 1K-7.5K Hz.continuous
Speed Drift with Temperature: ±1% Maximum
Idle Adjust CW: 60% of set speed
Idle Adjust CCW: Less than 1200 Hz.
Droop Range: 1-5% regulation
Droop Adj. Max. (K-L Jumpered): 400 Hz., ±75Hz.per 1.0 A Change
Droop Adj. Min. (K-L Jumpered): 15 Hz., ±6 Hz.per 1.0 A Change
Speed Trim Range: ±200 Hz.
Remote Variable Speed Range: 500-7.5 Hz.or any part thereof
Terminal Sensitivity:
J 100 Hz., ±15 Hz/Volt @ 5.0
K Impedance,L 735 Hz., ±60 Hz/Volt @ 65 K Impedance,
N 148 Hz., ±10 Hz/Volt @ 1 Meg. Impedance
P 10V DC Supply @ 20 ma Max.
Speed Switch Adjustment Range: 1000-10000 Hz.
