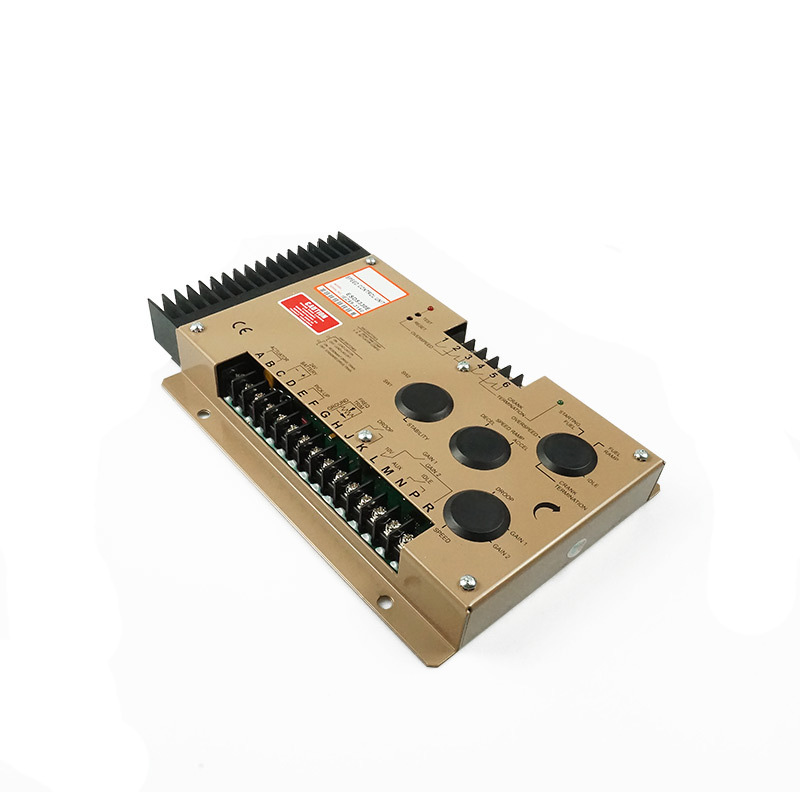

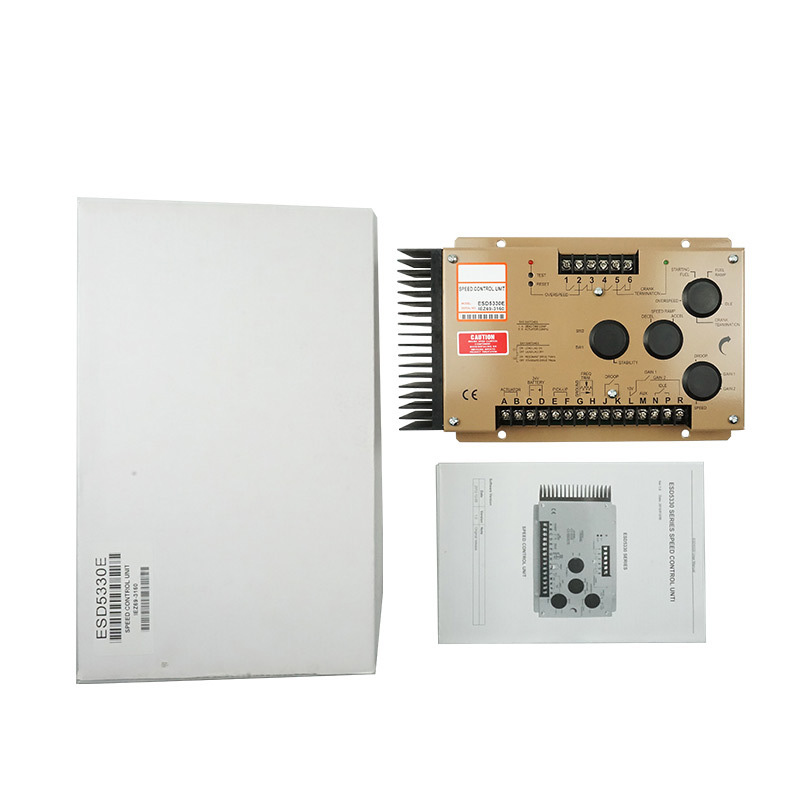

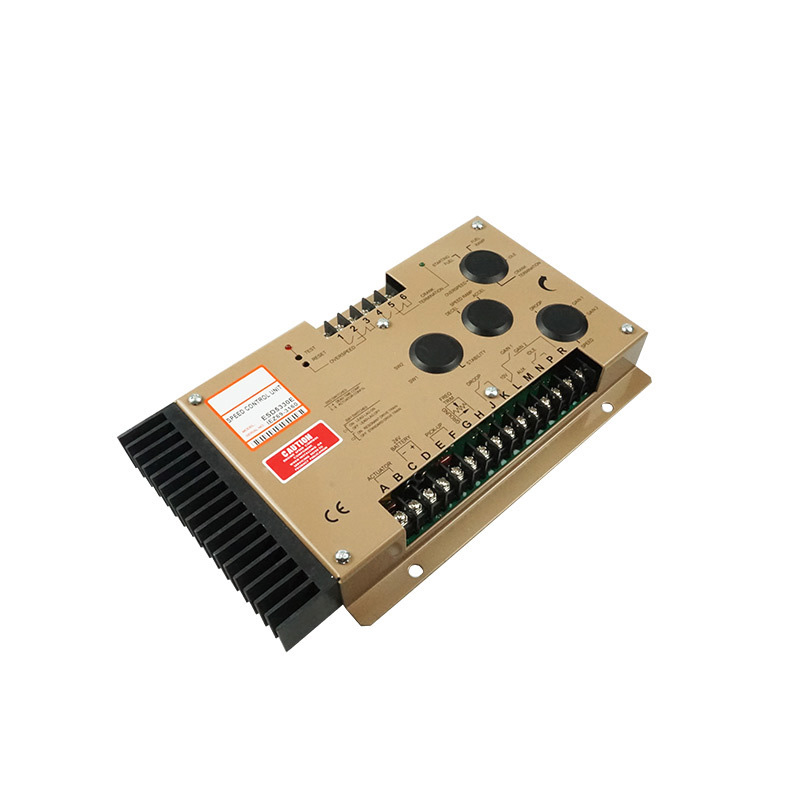

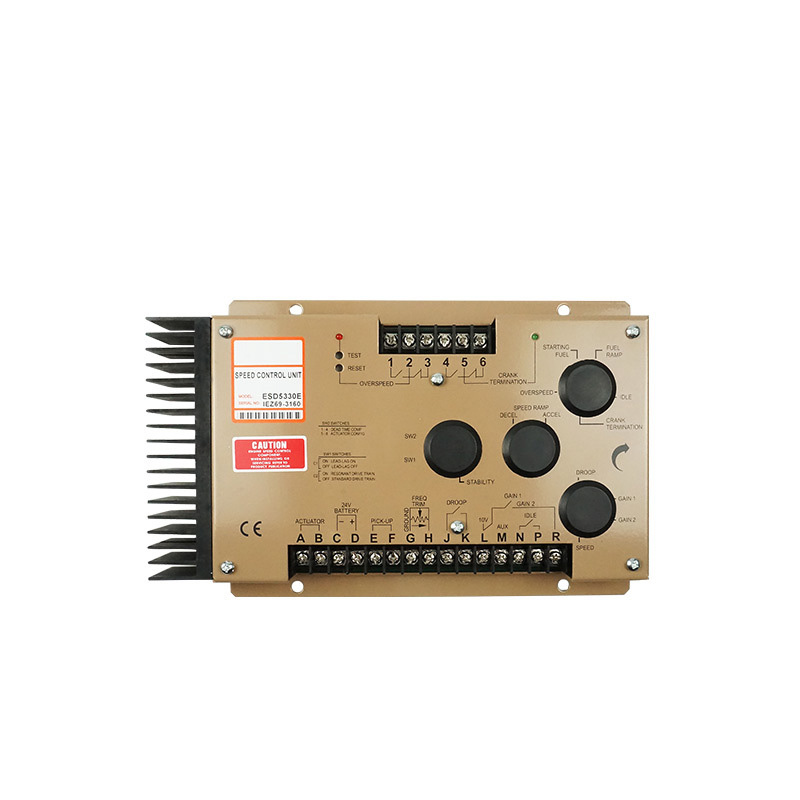

Engine Controller ESD5330 Speed Control Governor
Engine Controller ESD5330 Speed Control Governor Engine Controller ESD5330 Speed Control Governor Engine Controller ESD5330 Speed Control Governor Engine Controller ESD5330 Speed Control Governor

Engine Controller ESD5330 Speed Control Governor

Product ID : ESD5330
Product Attributes :

12-32V DC Generator Auto Start Control Speed Control Unit ESD5330 is rugged enough to be placed in a control cabinet or engine mounted encosure with other dedicated control equipment. If water, mist or condensation may come in contact with controller, it should be mounted certically. This will allow the fluid to drain away from the speed control unit.

Product Description
12-32V DC Generator Auto Start Control Speed Control Unit ESD5330







Input
Supply
12 or 24 VDC Battery System (Transient and Reverse Voltage)
Polarity
Negative Ground (Case Isolated)
Power Consumption
100 ma (no actuator current)
 Actuator Current Range @77°F
(25 °C) - (Inductive Load)
Min.2.5 Amps; Max. 10Amps continuous
Speed Sensor Signal
0.5 ~ 120V RMS
Speed switch Relay
Contacts(N.O.and N.C)
10 AMPs




Performance

Isochronous Operation/Steady
State Stability
±0.25% or better
Speed Range/Governor
1K to 7.5K Hz continuous
Speed Drift with Temperature
±1% Max
Speed trim range
±200 Hz
Idle Speed adjustment range
25-85% of rated speed


Environmental
Ambient Operating
Temperature Range
-40 to +180°F(-40°+85 °C)
Relative Humidity
Up to 95%
All Surface Finishes
Fungus Proof and Corrosion Resitant

Reliability
Vibration
1G @ 20 to 100 Hz.
Testing
100% Functionally Tested

Physical
Dimensions
See Section 10"Wiring&Outline Diagram"
Weight
3 lbs.
Mounting
Any position, Vertical Preferred
