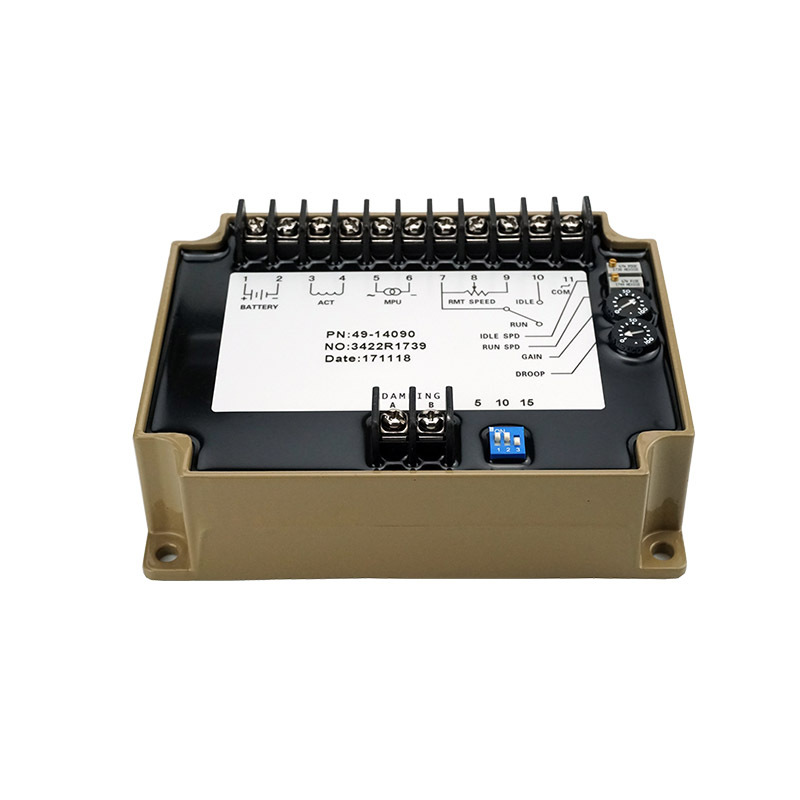

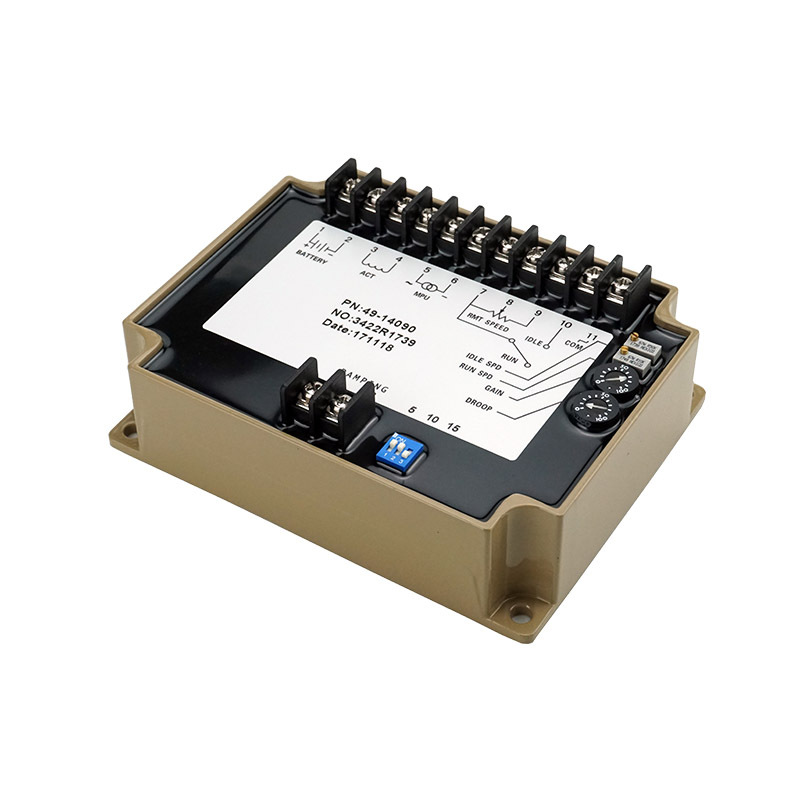

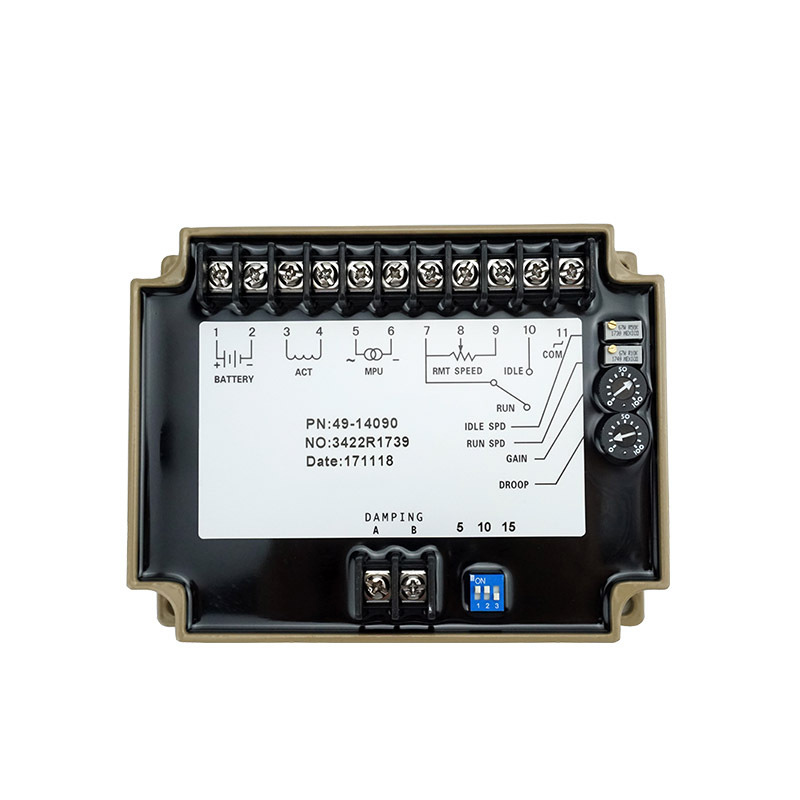

4914090 generator spare parts governor automatic control
Product ID : 4914090
Product Tags :
Generator Speed GovernorGenset Generator Engine Speed Governor Control Unit Controller
Product Description
| 4904090 | |
| RPM Stability: | <±0.25% |
| Speed Range: | 1KHz ~ 6.5KHz |
| Thermal Stability: | Max ±0.7% |
| IDLE Regulation: | 260 ±20Hz |
| DROOP Regulation: | Minimum 15Hz ±6Hz/ 1 Amp |
| Maximum: 400Hz ±75Hz/ 1 Amp | |
| External Speed Regulation: | ±200Hz (with 1 KΩ connected) |
| AUX Input Sensitivity: | 148Hz / 1V., ±10Hz |
| Impedance: | 1MΩ |
| ENVIRONMENT: | |
| Working Humidity Range: | Maximum 95% |
| Environment Temprature: | '-15 ~ 55 °C |
| Shocking: | 25HZ 2mm |
| INPUT POWER SUPPLY: | |
| Voltage: | 12 or 24V DC |
| Grounding Pole: | Negative pole |
| Power Supply: | Negative pole |
| Actuator Continuous Current: | Maximum 2.5A |
| Insulating strength | ≥500MΩ |
