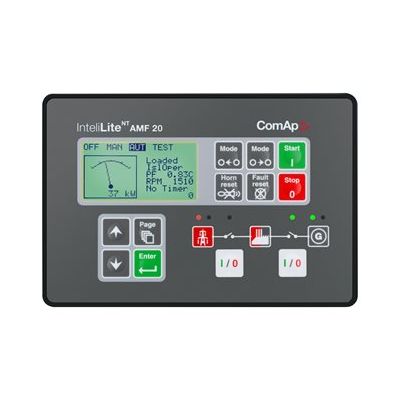

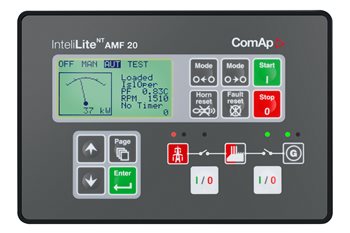

Genset amf Controller LCD Screen Display Generator Auto Controller AMF20
Product ID : AMF20
Product Tags :
Auto Genset Generator ControllerElectronic Auto Start Generator SetGenerator ATS ControllerGenerator Spare PartsGenerator Speed ControllerGenerator parts speed control unitIntelligent Generator Controller AutomaticRemote Monitor ATS AMF Generator controllerSmart Genset Controllerelectronic engine governor control
Product Attributes :
|
AMF-20 |
|
|
Style |
AMF-20 |
|
Power Supply |
8 to 35 Vdc Continuous |
|
Cranking Dropouts: |
Able to survive voltage dips during cranking. Without |
|
Alternator Input Range |
15 - 305 V AC RMS (+20%) |
|
Alternator Input Frequency: |
50 - 60 Hz at rated engine speed. (Minimum 75V AC) |
|
Start Output: |
Solid State 1.2A negative grounding terminal |
|
Run Output: |
Solid State 1.2A negative grounding terminal |
|
Pre-heat Output: |
Solid State1.2A negative grounding terminal |
|
Operating Temperature Range: |
-30 to +70°C |
Product Description
- Compact gen-set controller for single genset operating in standby or prime power modes
- Meets all requirements for Auto Mains Failure (AMF) applications
- Full gen-set monitoring and protection
- Running hours event and performance log
- Multiple languages (user changeable) in controller, even more in installation suite
- Plug-in extension modules capability
- WebSupervisor and AirGate support*
- Automatic SMS on alarm or event & gen-set control over SMS*
- On-line control and monitoring over web pages (embedded web server) via plug & play IB-Lite
- Optional GSM/GPRS modem/wireless Internet via IL-NT GPRS
- Fuel theft protection
- Alternative switchable configuration
- Automatic and manual GCB and MCB control
- Magnetic pickup input
- D+ preexcitation terminal
- True RMS measurement
- 3 phase power measurement of gen-set and mains incl. kWh
- 3 configurable analog inputs
- 7 binary inputs
- 7 binary outputs
