PRODUCT

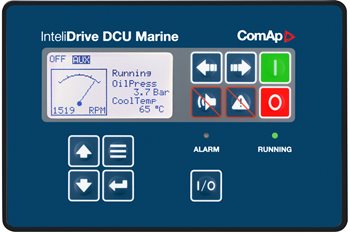

Engine controller for Marine Applications ID-DCU Marine
Product ID : ID-DCU Marine
Product Tags :
Auto Genset Generator ControllerElectronic Auto Start Generator SetGenerator ATS ControllerGenerator Spare PartsGenerator Speed ControllerGenerator parts speed control unitIntelligent Generator Controller AutomaticRemote Monitor ATS AMF Generator controllerSmart Genset Controllerelectronic engine governor control
Product Description
- Modular IACS Certified Engine Controller for Marine Applications
- Control, monitoring and protection for any type of marine engines
- Dedicated Emergency, Auxiliary, Harbour and Propulsion engines application
- Single speed application for generators and variable speed application for propulsion, pumps, compressors
- Support of wide range of EFI (ECU) engines with Tier 4F support
- Support of multiple J1939 devices on one CAN bus line
- Connection to engine via primary J1939 and backup J1587 buses or Cummins Modbus
- Remote monitoring via Modbus, Ethernet and AirGate
- Configurable Modbus RTU and Modbus TCP
- RS232, RS485 via ID-COM, Ethernet communication support via IB-NT
- WebSupervisor support for remote supervising and monitoring
- Redundant architecture: Main unit + Backup module
- Backup ID-RPU module with broken wire protections
- Speed/load control via J1939 or J1587 buses
- Symmetrical load sharing for propulsion engines with J1939 (via CAN bus)
- Power management controller cooperation over CAN bus (IG/IS-NTC-BB)
- Integrated clutch control
- 14 binary inputs
- 14 binary outputs
- 8 analog inputs
- Marine certified extension modules for expandable number of Input/Outputs
- 80× AIN, 32× AOUT, 112× BIN, 112× BOUT
- Load sharing for propulsion engines, Integrated clutch control for propulsion engines
- Switching between primary and secondary battery
- Internal configurable PLC with large set of functions
- PLC lock capability to keep your know-how safe
- Event driven History record up to 4000
- Customizable colour HMIs, incuding InteliVision 12T OEM support
- I-RD-CAN Marine remote display is replaced by ComAp HMIs InteliVision
