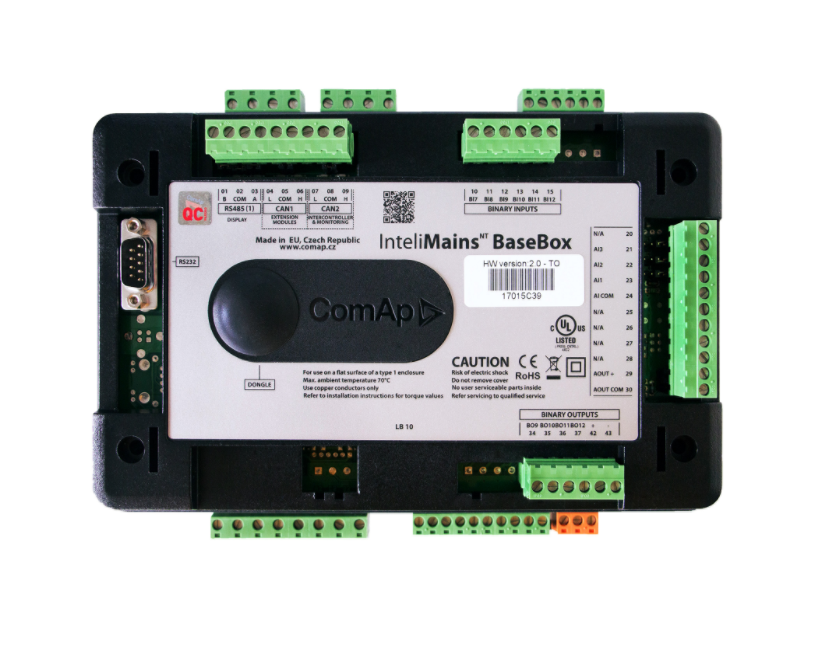

Mains Supervision Controller Base Unit IM-NT-BB
Product ID : IM-NT-BB
Product Tags :
Auto Genset Generator ControllerElectronic Auto Start Generator SetGenerator ATS ControllerGenerator Spare PartsGenerator Speed ControllerGenerator parts speed control unitIntelligent Generator Controller AutomaticRemote Monitor ATS AMF Generator controllerSmart Genset Controllerelectronic engine governor control
Product Description
- For multiple up to 31 gen-sets operating in parallel to mains (or isolated parallel)
- To be used in conjunction with detachable / external colour displays InteliVision 5, InteliVision 8, InteliVision 12Touch, InteliVision 18Touch
- Import/export power control of the gen-set group; many different power control modes available
- Reverse synchronization of the loaded gen-set group to mains
- Coupling of several synchronized mains to a common bus
- Allows to build complex applications with more mains incomers, bus-tie breakers etc.
- AMF function, Baseload, Import / Export, Peak shaving
- Mains measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr
- Bus measurement: U, I, Hz, kW, kVAr, PF
- Selectable measurement ranges for AC voltages and currents – 120 / 277 V, 0–1 / 0–5 A
- True RMS (TRMS) is used with Voltage, Current and Power measurement
- Inputs and outputs configurable for various customer needs
- Bipolar binary outputs - possibility to use BO as High or Low side switch
- Event-based history (up to 1000 records) with customer-selectable list of stored values
- Integrated PLC programmable functions
- Integrated fixed and configurable protections
- DIN-Rail mount of the controller
- Customized firmware solution
