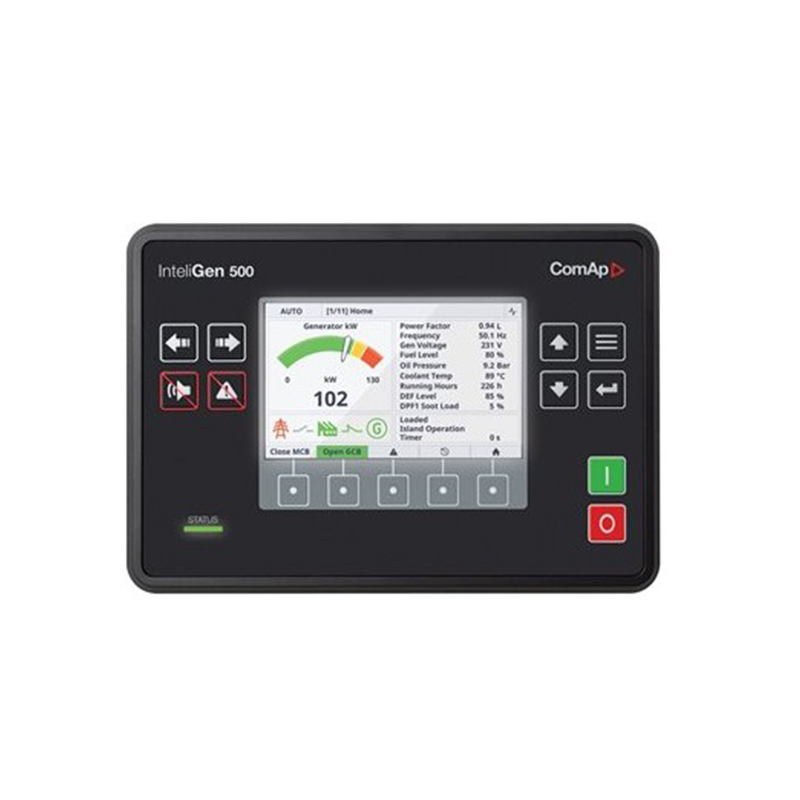

Advanced paralleling gen-set controller with 5” color display InteliGen 500

• Synchronising - Optimize your gen-set usage or parallel different sizes and brands of generators
• PLC - Utilise our unique, and easy to use PLC drag-and-drop blocks for configuration.
• New design - Flexibility to change the application e.g. SPtM and MINT.
• Built in AVRi - You no longer need a separate AVRi interface in your installation.
• Plug-in modules - Customize your controller with our plug-in extension and communication modules.
• 4G/LTE - Connect to your gen-set via 4G/LTE for alerts or use ComAp's WebSupervisor.
• GPS - Always know the location of your gen-set using geofencing for theft or movement alerts.
• InteliConfig - Our new configuration and monitoring PC tool (based on new LiteEdit) will offer you multi gen-set control and monitoring as well as easy set-up.

​InteliGen 500 is further offering:

• 5" TFT with 800x480 px resolution
  • All important information available on well arranged measuring screens
  • Easy parameters setting
  • On-screen trends
• Easy switching between parallel to mains or multiple genset applications
  • Multiple gensets in parallel to mains available together with InteliMains 210 controller
• The support of hybrid applications together with InteliSys NTC Hybrid
• Two types of synchronisations: Phase Match or Slip Synchro
• Two types of Load/VAr Sharing: Isochronous (CAN) or Droop, including Emergency Droop
• Direct communication with EFI engines including Tier 4 Final support
• Total remote monitoring and control
  • InteliConfig for configuration, single genset and multi genset/site monitoring
  • WinScope for precise tuning of PID regulators exactly according to gen-set type and application needs
  • WebSupervisor for cloud based monitoring and control of your whole gen-set fleet
• Wide range of communication and connection capabilities including:
  • USB, CAN, RS485 and Ethernet on board
  • USB master for configuration or firmware upload or download
  • RS232 and additional RS485 via plug-in module
  • Internet access by using of inbuilt Ethernet or GPRS/3G/4G via plug-in modules
  • Configurable Modbus RTU or TCP and support of SNMP v2
• Remote display InteliVision 5.2
• Internal PLC support with PLC editor and monitor included in InteliConfig
• Active SMS and emails in different languages
• Geofencing and tracking via WebSupervisor
• 2 x 10 A binary outputs for cranking and fuel solenoid, powered by separated E-Stop input
• 4x switchable analog inputs (R/U/I)
• Option for additional inputs/outputs
• Flexible event based history with up to 500 events
• Load shedding, dummy load capability
• Comprehensive gen-set protections
• Multipurpose flexible timers
• UL listed
