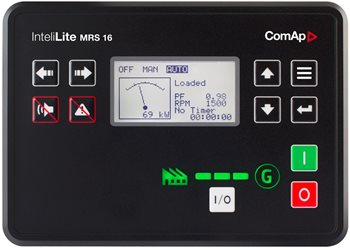

InteliLite NT MRS16 Genset Controller Generator Control Panel
Product ID : InteliLite MRS 16
Product Tags :
Auto Genset Generator ControllerElectronic Auto Start Generator SetGenerator ATS ControllerGenerator Spare PartsGenerator Speed ControllerGenerator parts speed control unitIntelligent Generator Controller AutomaticRemote Monitor ATS AMF Generator controllerSmart Genset Controllerelectronic engine governor control
Product Description
- Single gen-set controller for prime power applications
- Easy to install, configure and use
- 5 languages in the controller
- 3 level of password
- 3 sets of alternative configuration
- Direct communication with EFI engines
- Tier 4 final ready
- Total remote monitoring and control
- Cloud-based monitoring and control via WebSupervisor
- Wide range of communication capabilities including:
- connection via RS232, RS485, CAN and on board USB
- internet access using Ethernet, GPRS, 3G or 4G
- support for Modbus (TCP/RTU) and SNMP (v1/v2c – including traps)
- Active SMS and emails in different languages
- Geofencing and tracking via WebSupervisor
- In-built PLC, complemented with a PLC monitoring tool in InteliConfig
- 11 inputs and 7 outputs on-board
- 2x 10 A binary outputs for cranking and fuel solenoid
- More I/Os available over plug-in or CAN modules (EM-BIO8-EFCP, Inteli AIN8, Inteli AIN8TC, Inteli AIO9/1, Inteli IO8/8, IGS-PTM)
- Remote Annunciator over CAN
- Activation of outputs based on inputs
- Load shedding, dummy load capability
- Real time clock (with battery)
- Multipurpose flexible timers
- Flexible event based history with up to 350 events
- True RMS measurement
- Comprehensive protections
- Possibility to disable protections
- Available also in low temperature version (Order code: IL3MRS16BLA)
- UL Listed
