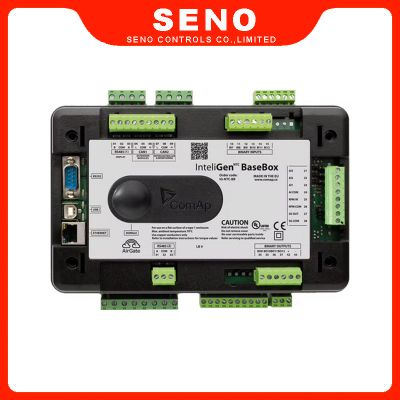

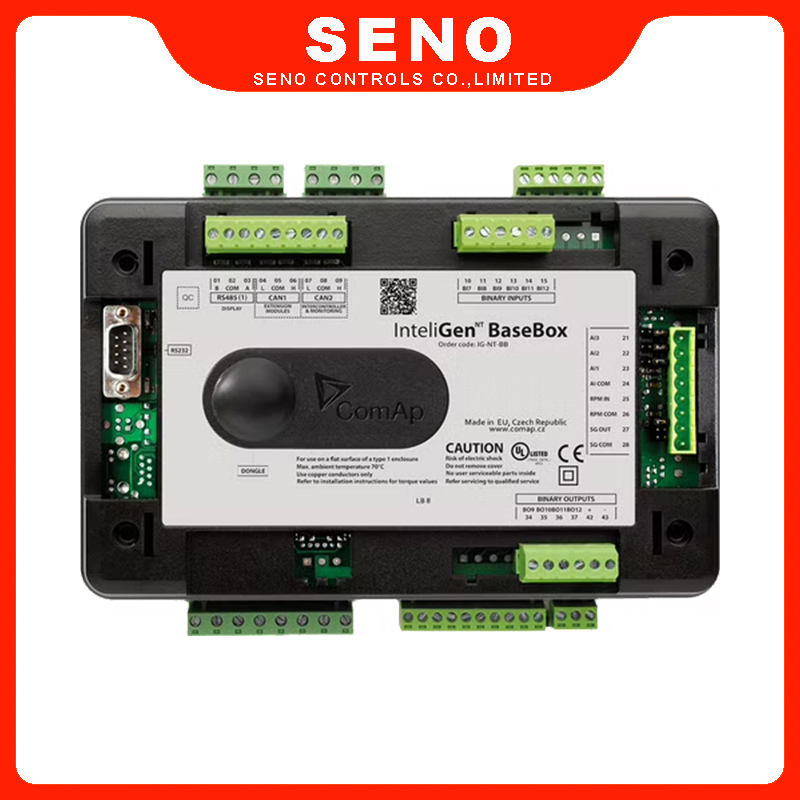

ComAp controller InteliGen NT BaseBox GeCon Marine

Reliable marine-certified generator and gen-set controller with PLC capabilities, enabing flexible operations, on-site and remote monitoring of simple and complex marine applications.

The InteliGen NT BaseBox GeCon Marine offers:

• Main functions: AMF function, Baseload, Import / Export, Peak shaving, Voltage and PF control (AVR)
• Faster and cost-effective operations with signal sharing over a CAN bus
• Automatic synchronisation and power control via speed governor or ECU
• Measurement of both generator and mains side
• Configurable inputs and outputs enabling customers to design functions according to their various needs
• Bi-polar binary outputs
• Event-based history for fast and easy troubleshooting
• Controller redundancy minimising solution downtime and ensuring the power isn’t compromised
• Integrated PLC programmable functions
• Embedded fixed and configurable generator protection
• Easy customisation of the firmware solution according to your requirements
• Recommended to use with external colour displays InteliVision 8 or InteliVision 5
• The controller has been certified by the following marine organisations: DNV, LR, ABS, BV, RINA, CRS, CCS

To run the GeCon software you need to order InteliGen NT BaseBox, and then install the correct GeCon software:

• GeCon LandBased (included in standard firmware)
• GeCon Marine (special dedicated marine firmware)
• IGS-NT-LSM+PMS dongle (required for Load sharing and Power Management)
