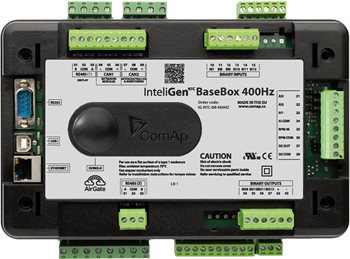

Generator PARTS genset controller IG-NTC-BB 400HZ
Product ID : IG-NTC-BB 400HZ
Product Tags :
Auto Genset Generator ControllerElectronic Auto Start Generator SetGenerator ATS ControllerGenerator Spare PartsGenerator Speed ControllerGenerator parts speed control unitIntelligent Generator Controller AutomaticRemote Monitor ATS AMF Generator controllerSmart Genset Controllerelectronic engine governor control
Product Description
- Comprehensive gen-set controller for land aircraft operating at 400 Hz frequency (GPU-Ground Power Units)
- Island operation, based on standard MINT application
- Synchronizing and power management functions
- To be used in conjunction with detachable / external colour displays InteliVision 5, InteliVision 8, or InteliVision 18Touch
- Support of engines with ECU (Electronic Control Unit)
- Complete integrated gen-set solution and signal sharing via CAN bus – minimum external components needed
- Many communication options – easy remote supervising and servicing
- Gen-set performance log for easy problem tracing
- Automatic synchronizing and power control (via speed governor or ECU)
- AMF function, Baseload, Import / Export, Peak shaving, Voltage and PF control (AVR)
- Generator measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr
- Mains measurement: U, I, Hz, kW, kVAr, PF
- Selectable measurement ranges for AC voltages and currents – 120 / 277 V, 0–1 / 0–5 A
- True RMS (TRMS) is used with Voltage, Current and Power measurement
- Inputs and outputs configurable for various customer needs
- Bipolar binary outputs - possibility to use BO as High or Low side switch
- 1× RS232 / 2× RS485 interface with Modbus protocol support; Analog / GSM / ISDN / CDMA modem communication support; SMS messages; ECU Modbus interface; secondary RS485 converter is isolated
- AirGate support
- Ethernet connection (RJ45)
- USB 2.0 slave interface
- Controller redundancy
- Event-based history (up to 1000 records) with customer-selectable list of stored values; RTC; statistic values
- Integrated PLC programmable functions
- Integrated fixed and configurable protections
- DIN-Rail mount
- Customized firmware solution
