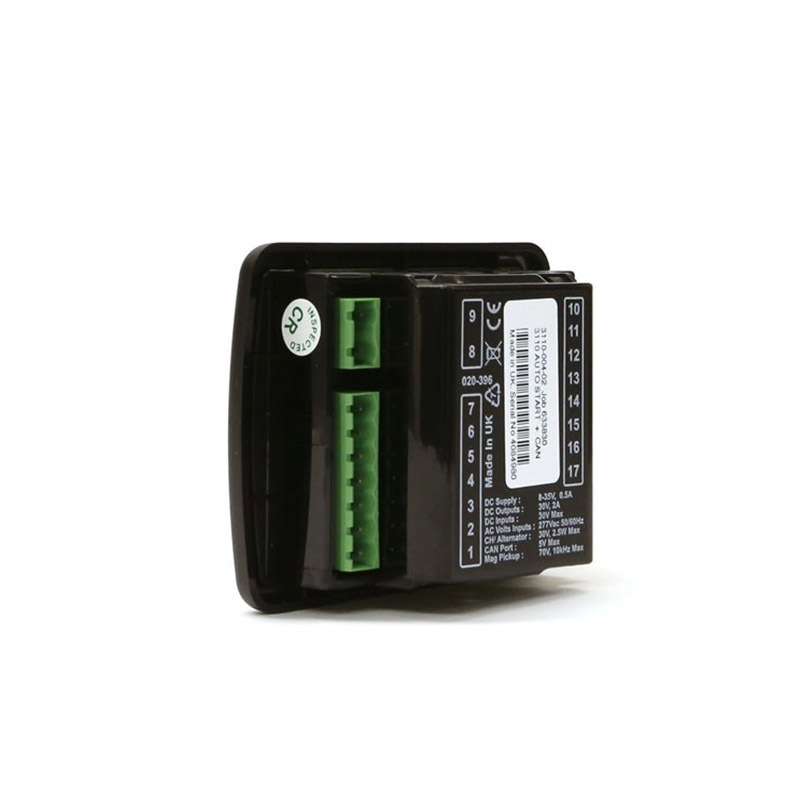

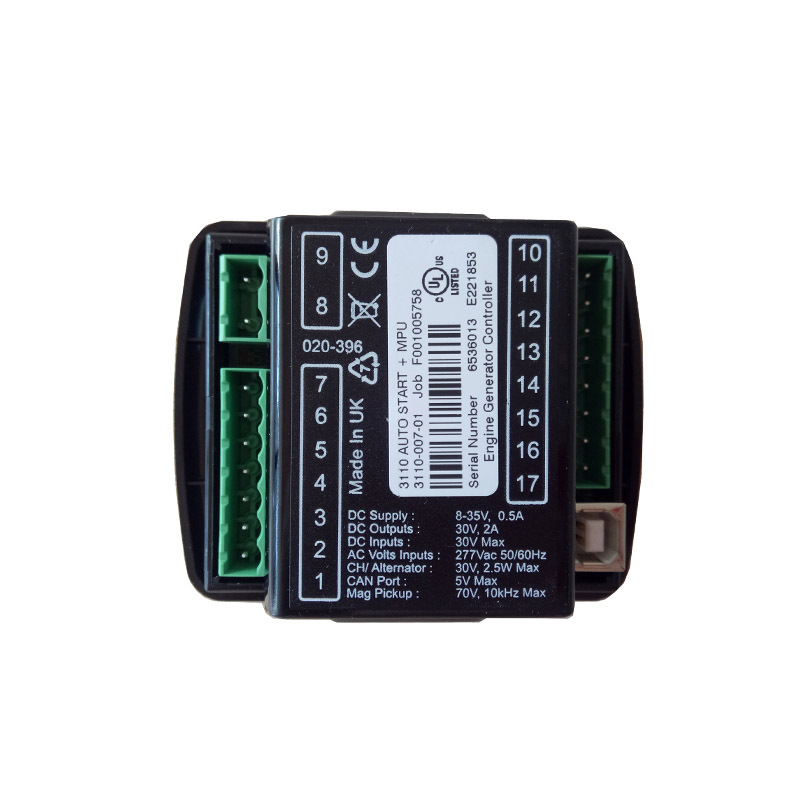

Electric Generator Controller DSE3110 MPU for Generator Parts
Product ID : DSE3110
Product Tags :
Auto Genset Generator ControllerElectronic Auto Start Generator SetGenerator ATS ControllerGenerator Spare PartsGenerator Speed ControllerGenerator parts speed control unitIntelligent Generator Controller AutomaticRemote Monitor ATS AMF Generator controllerSmart Genset Controllerelectronic engine governor control
Product Attributes :
The DSE3110 can be utilised as a Manual or Auto Start Module for single gen-set applications or engine only applications. The module has been designed to work with electronic and non-electronic engines, providing advanced engine monitoring and protection features.

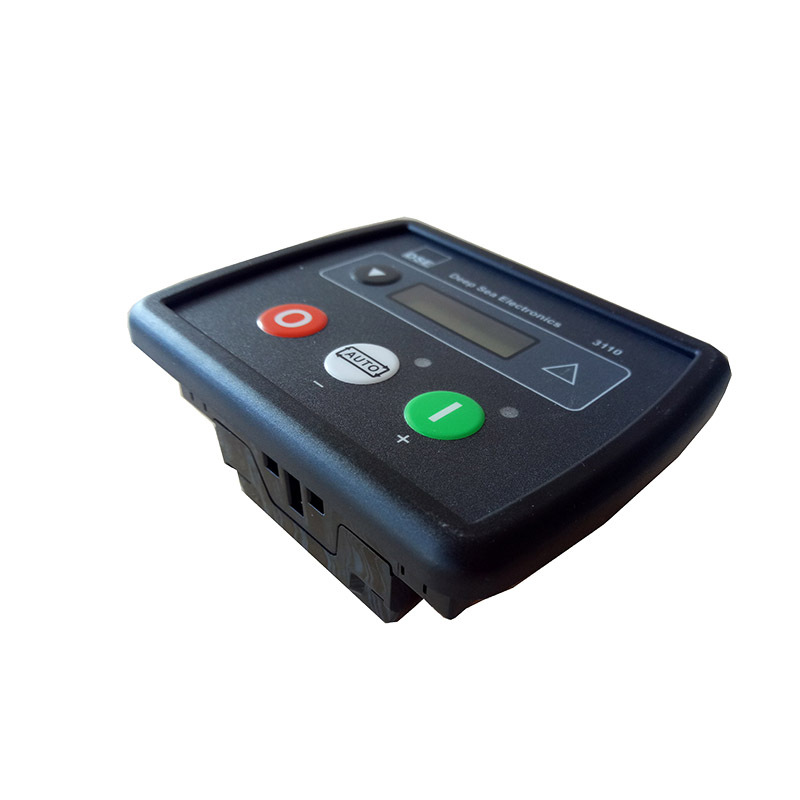

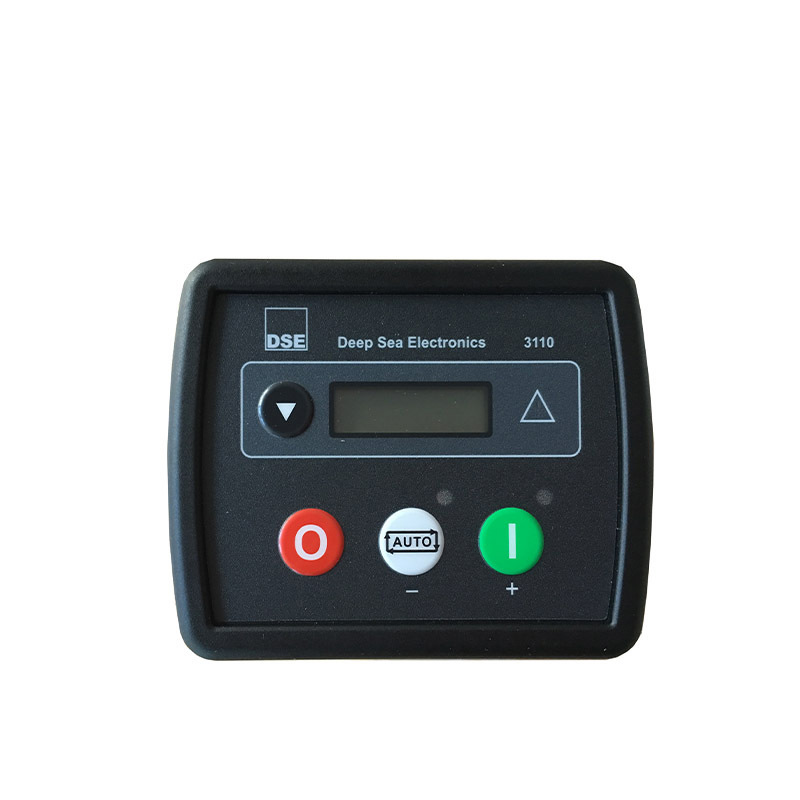

The DSE3110 includes a back-lit icon LCD display which clearly shows the status of the engine at all times.
The module has been designed to combine a maximum of 16 generators and 16mains (utility) supplies up to a maximum of 20 in one system, e.g. 16 generators and 4mains (utility) supplies (DSE5560 required to synchronise with the mains).
Product Description
| DC Supply | |
| Continuous Voltage Rating | 8 to 35 V Continuous. |
| Cranking Dropouts | Able to survive 0 V for 50mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achineved without the need for internal batteries. |
| Charge Fail/ Excitation | 8 to 35 V fixed power source 2.5W |
| Nominal Standby Current | 23 mA at 12 V, 18 mA at 24 V |
| MAXIMUM OPERATING CURRENT | 35 mA at 12 V, 30 mA at 24 V |
| Outputs | |
| OUTPUT A (FUEL) | 2 A DC at supply voltage |
| OUTPUT B (START) | 2 A DC at supply voltage |
| AUXILIARY OUTPUTS C & D | 2 A DC at supply voltage |
| GENERATOR | |
| VOLTAGE RANGE | 15 V - 333 V AC (L-N) |
| FREQUENCY RANGE | 3.5 Hz to 75 Hz |
| MAGNETIC PICK-UP | |
| VOLTAGE RANGE | ± 0.5v to 70v |
| FREQUENCY RANGE | 10,000 Hz (max) |
| DIMENSIONS | |
| OVERALL | 9.8 cm x 7.9 cm x 4.0 cm |
| PANEL CUT-OUT | 8 cm x 6.8 cm |
| MAXIMUM PANEL THICKNESS | 8 cm |
