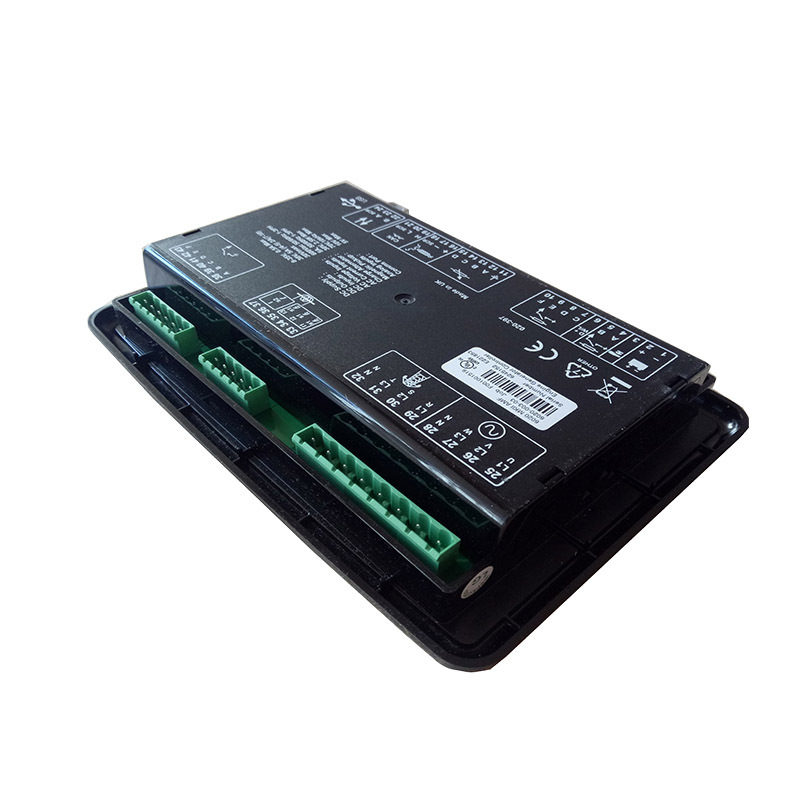

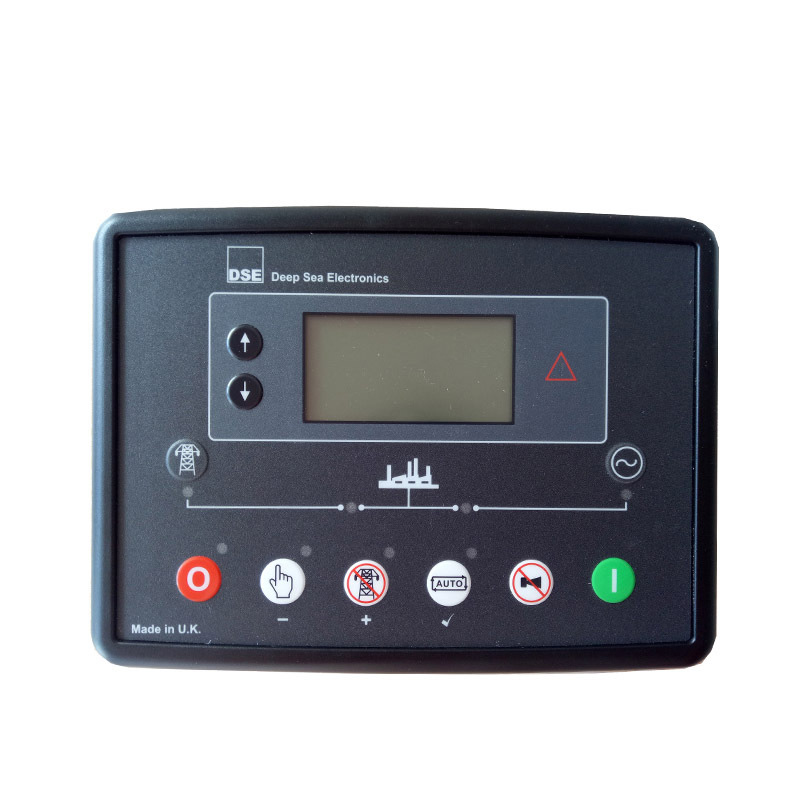

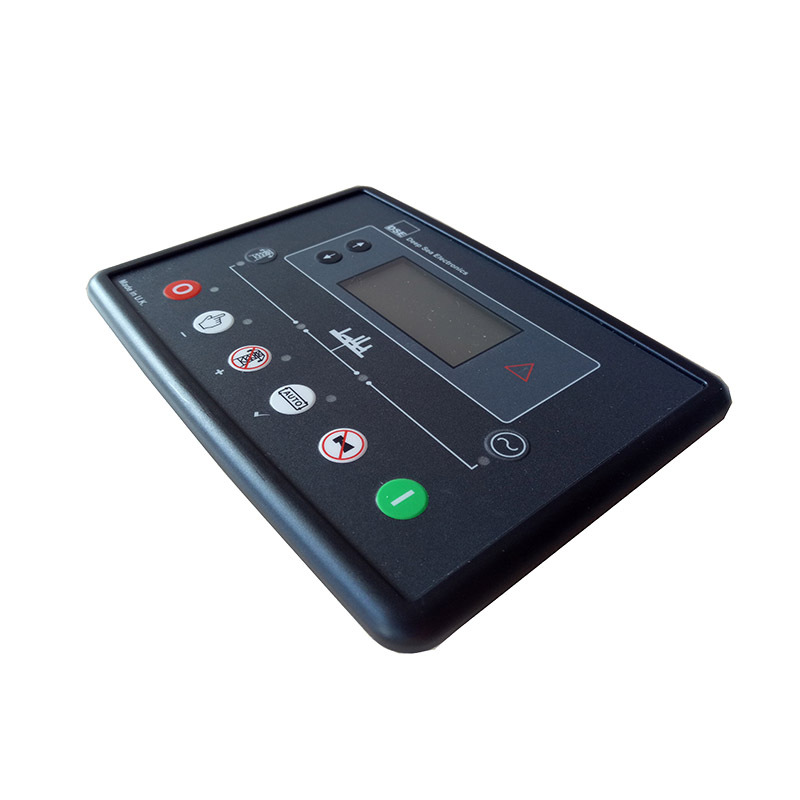

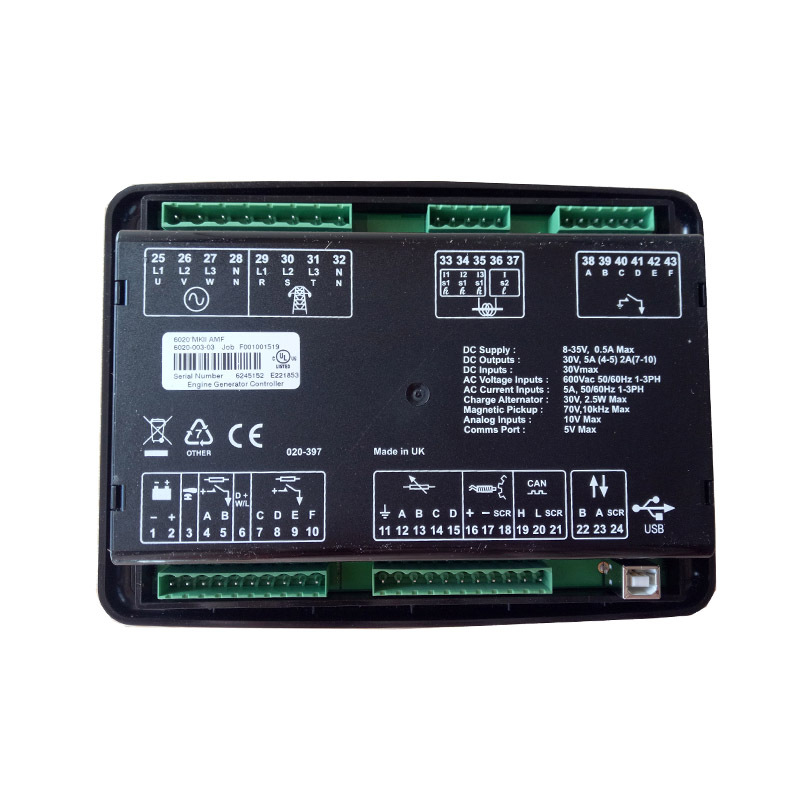

Generator Start Control Panel ATS module DSE6120 Controller
Product ID : DSE6120
Product Tags :
Auto Genset Generator ControllerElectronic Auto Start Generator SetGenerator ATS ControllerGenerator Spare PartsGenerator Speed ControllerGenerator parts speed control unitIntelligent Generator Controller AutomaticRemote Monitor ATS AMF Generator controllerSmart Genset Controllerelectronic engine governor control
Product Attributes :
Generator Start Control Panel ATS module DSE6120 Controller can completely replace with it. It has the function of auto mains (utility) failure control modules monitor incoming mains (utility) supplies and instruct gen-sets to start when mains (utility) power is not available. All modules include a range of intelligent control, monitoring and protection features for standard and electronic engine gen-set applications.
Product Description
| Deep Sea Auto Mains Failure Controller DSE6120 |
| Description | Deep Sea Controller 6120 |
| Place of origin | U.K |
| DC SUPPLY | 8V to 35V continuous |
| CRANKING DROPOUTS | Able to survive 0V for 50mS, providing supply was at least 10V before dropout and supply recovers to 5V. This is achieved without the need for internal batteries.LEDs and backlight will not be maintained during cranking. |
| MAXIMUM OPERATING CURRENT | 178mA at 12V 95mA at 24V |
| MAXIMUM STANDBY CURRENT | 88mA at 12V 50mA at 24V |
| GENERATOR INPUT RANGE |
15V to 333V AC (L-N) absolute maximum 50Hz - 60Hz (min 15V AC) |
| CHARGE FAIL/EXCITATION RANGE |
0V to 35V |
| MAGNETIC PICKUP | |
| VOLTAGE RANGE | 0.5V RMS minimum |
| FREQUENCY RANGE |
10,000 Hz (max) |
| OUTPUTS | |
| OUTPUT A (FUEL) |
2 Amp DC at supply voltage |
| OUTPUT B (START) |
2 Amp DC at supply voltage |
| AUXILIARY OUTPUTS C,D |
AUXILIARY OUTPUTS C,D |
