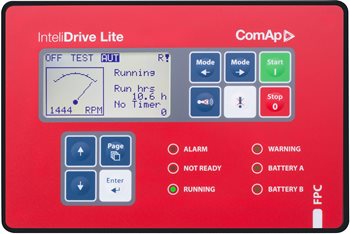

Genset Generator pats fire pump controller ID-FLX-FPC Inteli Drive Lite FPC
Product ID : ID-FLX FPC
Product Tags :
Auto Genset Generator ControllerElectronic Auto Start Generator SetGenerator ATS ControllerGenerator Spare PartsGenerator Speed ControllerGenerator parts speed control unitIntelligent Generator Controller AutomaticRemote Monitor ATS AMF Generator controllerSmart Genset Controllerelectronic engine governor control
Product Description
- Modular engine controller designed for diesel driven fire pump applications based on the NFPA 20 standard
- Automatic and manual starting sequence based on two batteries according to NFPA 20 standard
- Support of engines equipped with Electronic Control Unit (ECU) - J1939 or Cummins Modbus interface
- Analog gauge (VDO, Datcon) outputs – operator friendly
- Engine speed control
- 3 configurable analog inputs + 2 analog inputs of battery voltage measurement
- 7 configurable binary inputs and outputs
- 6 LED indicators (Alarm, Warning, Not Ready, Running, Battery A, Battery B)
- Selectable protections alarm/shutdown
- 1 level of password protection
- USB, RS485/RS232/Modem/Modbus communication
- Automatic SMS on alarm
- On-line control and monitoring over web pages (embedded web server) via IB-Lite
- 2 languages (user changeable)
- Real time clock and event history log
- Push buttons for simple control, lamp test
- Front panel sealed to IP65
- Based on the NFPA20 standards
- EN certification
- Comparator with hysteresis regulation
