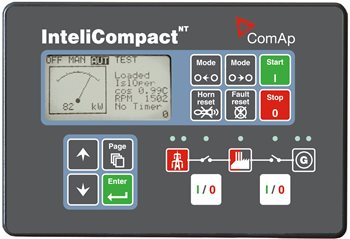

IC-NT SPTM Genset Generator Controller Automatic Start Module
Product ID : IC-NT SPTM
Product Tags :
Auto Genset Generator ControllerElectronic Auto Start Generator SetGenerator ATS ControllerGenerator Spare PartsGenerator Speed ControllerGenerator parts speed control unitIntelligent Generator Controller AutomaticRemote Monitor ATS AMF Generator controllerSmart Genset Controllerelectronic engine governor control
Product Description
- Compact genset controller for single genset operating in Parallel to Mains mode or Auto Mains Failure (AMF) mode with no-break transfers
- Meets all requirements for AMF applications
- Forward and reverse synchronizing
- Peak shaving, Peak lopping
- Load, speed, voltage and power factor control
- High tariff avoidance
- Mains import/export
- Full gen-set monitoring and protection
- Possibility to connect up to 8 gauges to display engine values
- True voltage and current RMS measurement
- Outstanding EFI engine support (CAN/J1939, RS232/Modbus) with diagnostic messages in plain text
- 3 phase generator voltage and current measurement
- 3 phase mains voltage measurement
- 3 phase power measurement
- 1 phase mains current measurement
- Additional 7 binary inputs/outputs via IC-NT CT-BIO7 (in total up to 16 inputs/15 outputs)
- 3 analog inputs
- RS232, RS485, USB, Modbus, GSM/Analog Modem, Internet communication*
- GPRS communication and IC-NT RD (remote display) software
- AirGate and WebSupervisor support
- Support of active SMS Events or Commands
- Event and performance log
- 2 languages (user changeable)
- IC-NT CT-BIO7 extension plug-in module included
