PRODUCT

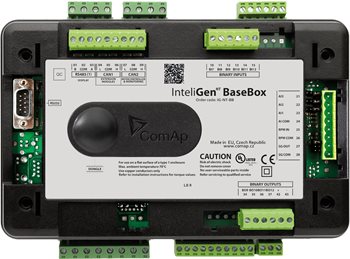

Complex Parallel Gen-set Controller with Detachable Colour Display IG-NT-BB
Product ID : IG-NT-BB
Product Tags :
Auto Genset Generator ControllerElectronic Auto Start Generator SetGenerator ATS ControllerGenerator Spare PartsGenerator Speed ControllerGenerator parts speed control unitIntelligent Generator Controller AutomaticRemote Monitor ATS AMF Generator controllerSmart Genset Controllerelectronic engine governor control
Product Description
- Gen-set controller for both single and multiple gensets operating in standby or paralleling modes. Overview of ComAp marine approved products available here
- To be used indenpendently or in conjunction with detachable / external colour displays InteliVision 5, InteliVision 8, InteliVision 12Touch, or InteliVision 18Touch
- Support of engines with ECU (Electronic Control Unit)
- Complete integrated gen-set solution and signal sharing via CAN bus – minimum external components needed
- Many communication options – easy remote supervising and servicing
- Gen-set performance log for easy problem tracing
- Automatic synchronizing and power control (via speed governor or ECU)
- AMF function, Baseload, Import / Export, Peak shaving, Voltage and PF control (AVR)
- Generator measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr
- Mains measurement: U, I, Hz, kW, kVAr, PF
- True RMS (TRMS) is used with Voltage, Current and Power measurement
- Inputs and outputs configurable for various customer needs
- Bipolar binary outputs - possibility to use BO as High or Low side switch
- RS232 interface with Modbus support; Analog / GSM / ISDN / CDMA modem support; SMS messages; ECU Modbus interface
- Controller redundancy
- Event-based history (up to 1000 records) with customer-selectable list of stored values; RTC; statistic values
- Integrated PLC programmable functions
- Integrated fixed and configurable protections
- DIN-Rail mount
- Customized firmware solution
- With Solution of Application support - manage up to 992 Gen-sets in Extended Multiple Gen-set Application (Bank Controller)
