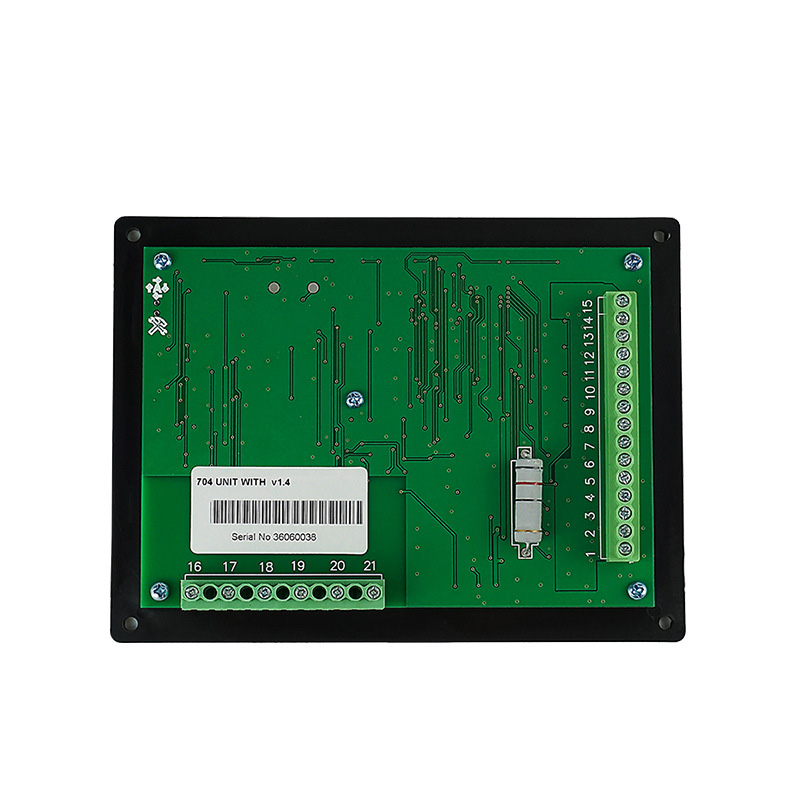

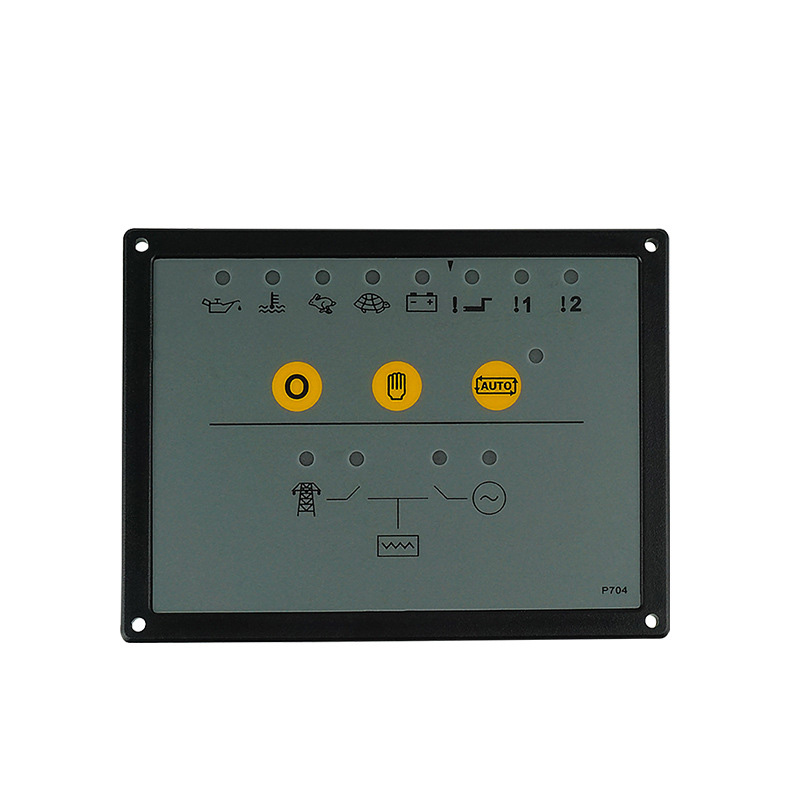

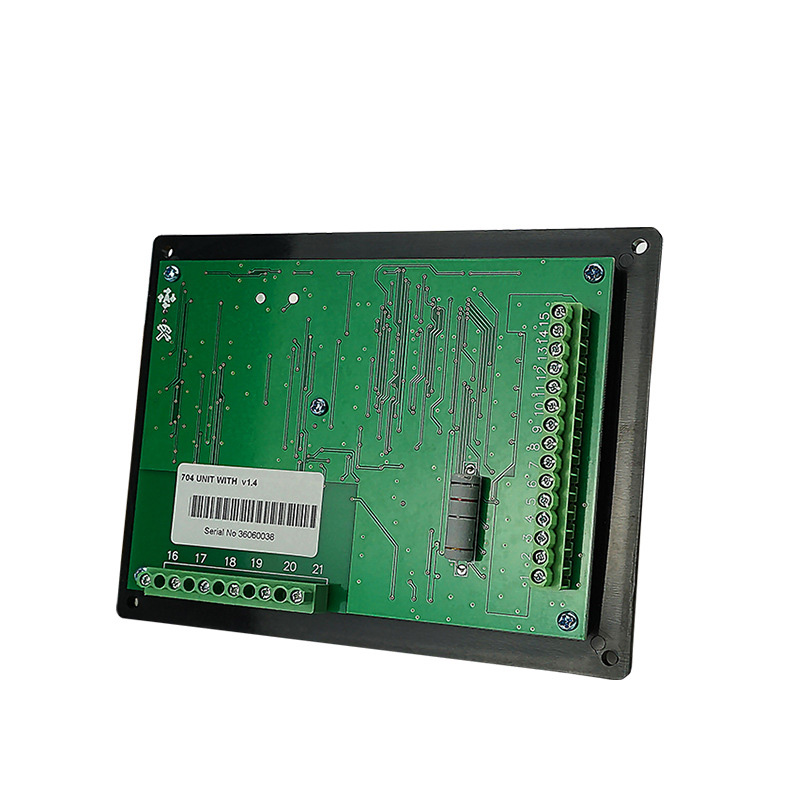

Diesel Alternator Genset Electronic Control Panel DSE704 Generator Engine Spare Parts
Diesel Alternator Genset Electronic Control Panel DSE704 Generator Engine Spare Parts Diesel Alternator Genset Electronic Control Panel DSE704 Generator Engine Spare Parts Diesel Alternator Genset Electronic Control Panel DSE704 Generator Engine Spare Parts

Diesel Alternator Genset Electronic Control Panel DSE704 Generator Engine Spare Parts

Product ID : DSE704
Product Tags : Auto Genset Generator ControllerElectronic Auto Start Generator SetGenerator ATS ControllerGenerator Spare PartsGenerator Speed ControllerGenerator parts speed control unitIntelligent Generator Controller AutomaticRemote Monitor ATS AMF Generator controllerSmart Genset Controllerelectronic engine governor control
Product Description
DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
MAXIMUM OPERATING CURRENT
50mA
MAXIMUM STANDBY CURRENT
51 mA at 12 V, 47 mA at 24 V
MAXIMUM SLEEP CURRENT
35 mA at 12 V, 32 mA at 24 V
MAINS (UTILITY)
VOLTAGE RANGE
75V(L-N) to 333V AC (L-N) absolute maximum
FREQUENCY RANGE
50Hz-60Hz at rated engine speed
OUTPUTS
OUTPUT A (FUEL)
1.2 Amp DC at supply voltage. Switches to
battery negative when active
OUTPUT B (START)
1.2 Amp DC at supply voltage. Switches to
battery negative when active
OUTPUTS C & D
2 A DC at supply voltage ­­
AUXILIARY OUTPUTS E,F,G,H
2 A DC at supply voltage
GENERATOR
VOLTAGE RANGE
15 V to 415 V AC (Ph to N)
26 V to 719 V AC (Ph to Ph)
FREQUENCY RANGE
3.5 Hz to 75 Hz
MAGNETIC PICK-UP
VOLTAGE RANGE
+/- 0.5 V to 70 V
FREQUENCY RANGE
10,000 Hz (max)
Online Inquiry
