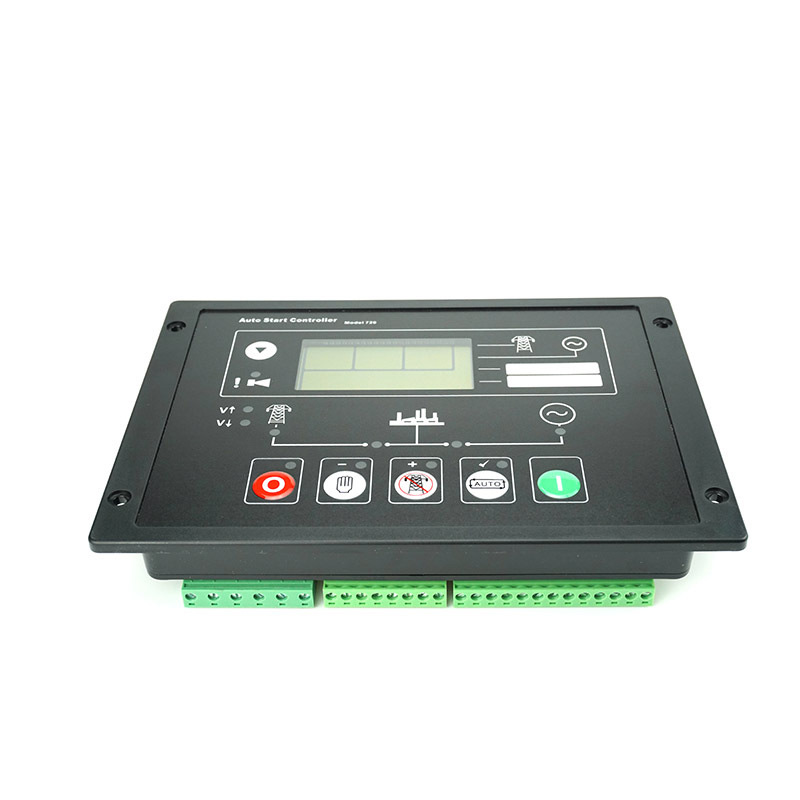

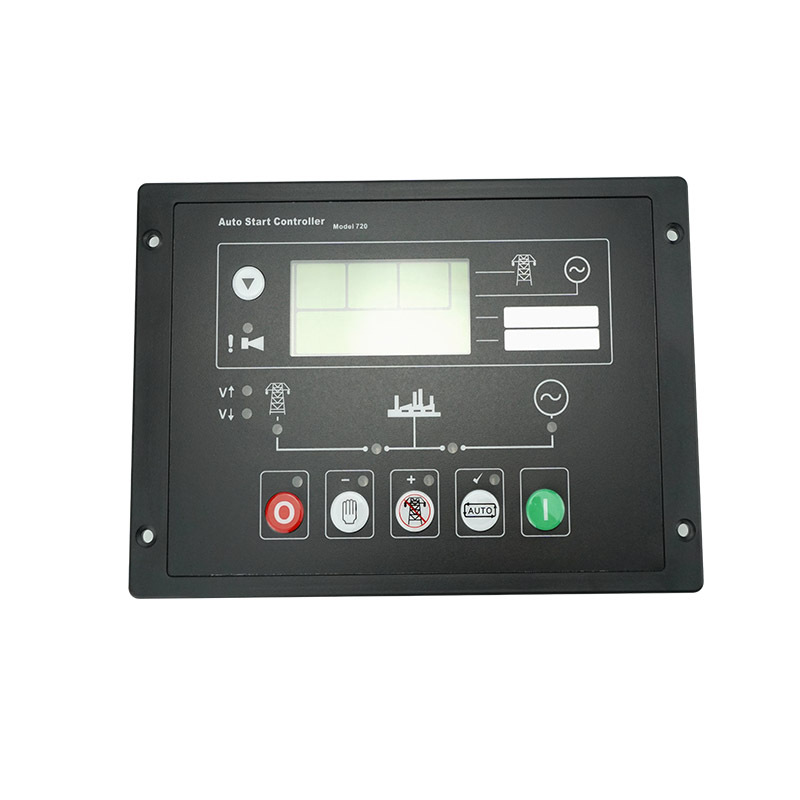

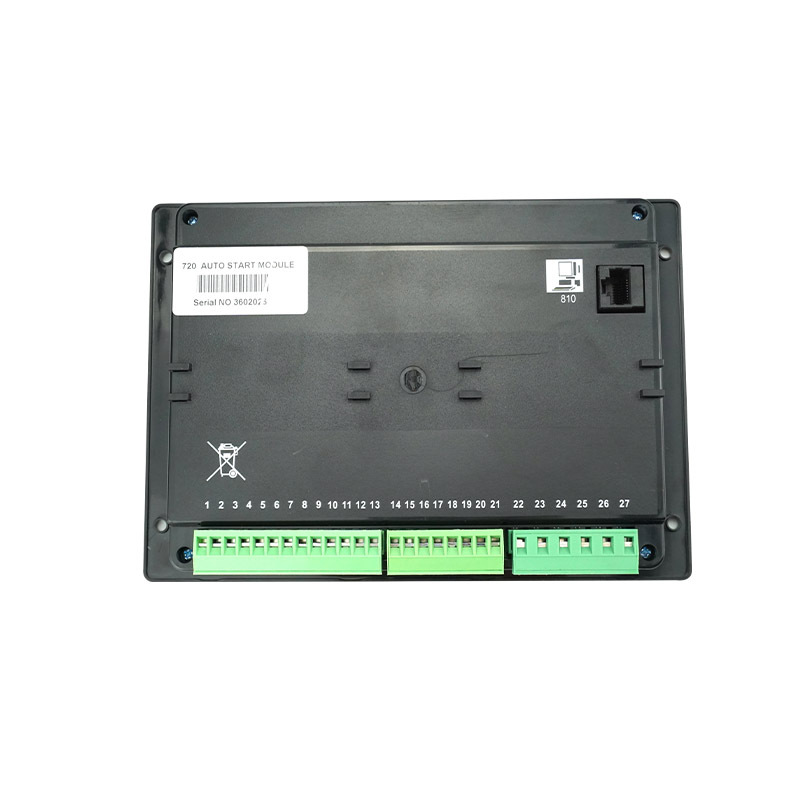

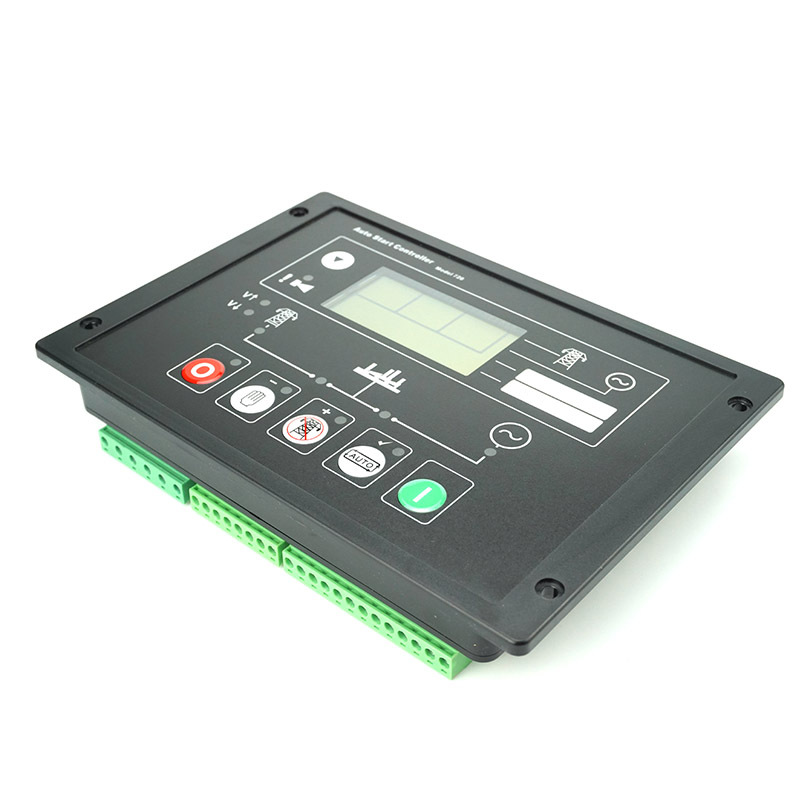

Diesel Engine Automatic Genset Generator Controller DSE720
Product ID : DSE720
Product Tags :
Auto Genset Generator ControllerElectronic Auto Start Generator SetGenerator ATS ControllerGenerator Spare PartsGenerator Speed ControllerGenerator parts speed control unitIntelligent Generator Controller AutomaticRemote Monitor ATS AMF Generator controllerSmart Genset Controllerelectronic engine governor control
Product Attributes :
Electronic Generator Control Module AMF DSE720 automatic mains failure module has been primarily designed to monitor the mains (utility) supply, starting the generator automatically should it fall out of limits, transferring the load automatically to the generator.
Product Description
|
Specification
|
|||
|
DC Supply
|
8.0V to 35V Continuous.
|
Cranking Dropouts
|
Able to survive 0V for 50mS, providing supply was at least 10V before dropout and supply recovers to 5V. This is achieved without the need for internal batteries.
|
|
Typical Standby Current
|
145mA at 12V. 150mA at 24V
|
Max. Operating Current
|
180mA at 12V. 190mA at 24V
|
|
Alternator / Mains (Utility) Input Frequency
|
50Hz - 60 Hz at rated engine speed
|
Start Output / Fuel output
|
2.4 Amp DC at supply voltage.
|
|
Panel cut-out
|
182mm x 137mm (7.17” x 5.39”)
Maximum panel thickness – 8mm (0.3”) |
Current Transformer Specification
|
5A 0.5VA secondary winding
|
|
|
|
|
|
