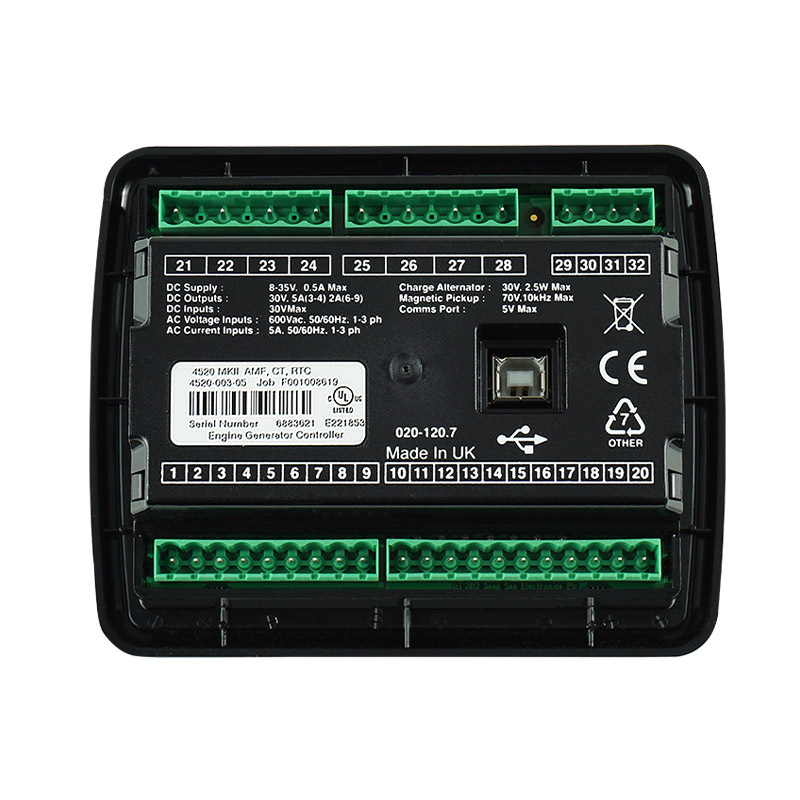

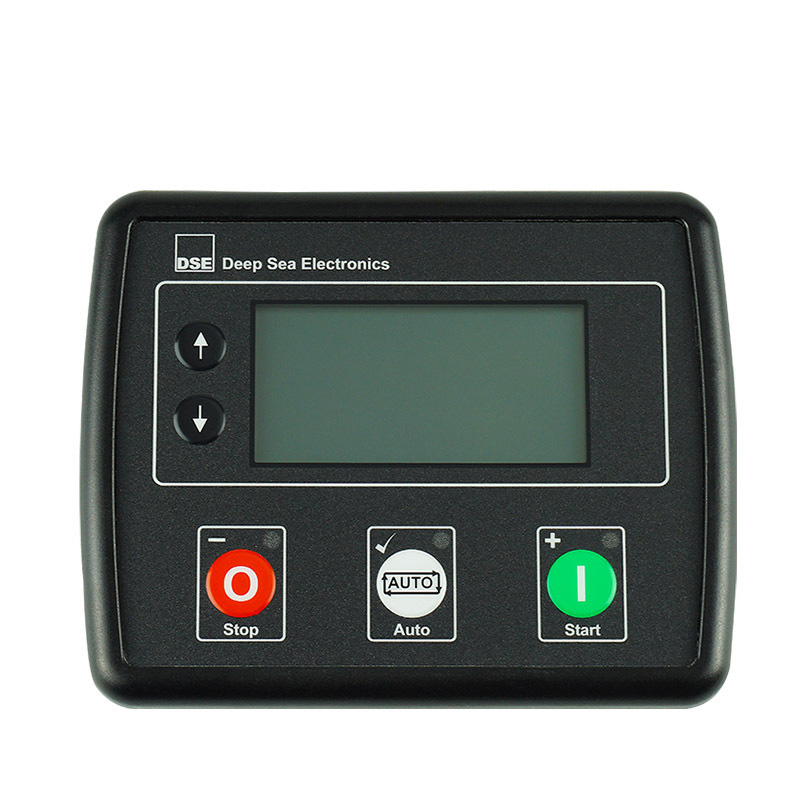

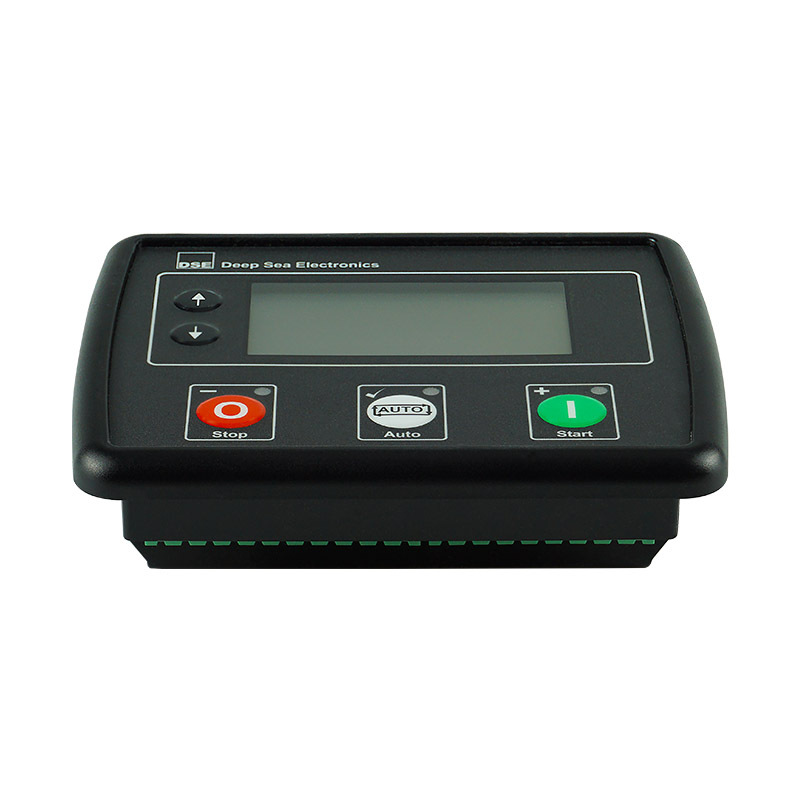

Generator Controller Auto Mains Failure Control Module Self Starting LCD Protection Controller DSE4520 Generator Parts
Generator Controller Auto Mains Failure Control Module Self Starting LCD Protection Controller DSE4520 Generator Parts Generator Controller Auto Mains Failure Control Module Self Starting LCD Protection Controller DSE4520 Generator Parts Generator Controller Auto Mains Failure Control Module Self Starting LCD Protection Controller DSE4520 Generator Parts

Generator Controller Auto Mains Failure Control Module Self Starting LCD Protection Controller DSE4520 Generator Parts

Product ID : DSE4520
Product Tags : Auto Genset Generator ControllerElectronic Auto Start Generator SetGenerator ATS ControllerGenerator Spare PartsGenerator Speed ControllerGenerator parts speed control unitIntelligent Generator Controller AutomaticRemote Monitor ATS AMF Generator controllerSmart Genset Controllerelectronic engine governor control
Product Description


DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
MAXIMUM OPERATING CURRENT
85 mA at 12 V, 96 mA at 24 V
MAXIMUM STANDBY CURRENT
51 mA at 12 V, 47 mA at 24 V
MAXIMUM SLEEP CURRENT
35 mA at 12 V, 32 mA at 24 V

MAINS (UTILITY)
VOLTAGE RANGE
15 V to 415 V AC (Ph to N)
26 V to 719 V AC (Ph to Ph)
FREQUENCY RANGE
3.5 Hz to 75 Hz



OUTPUTS
OUTPUT A (FUEL)
10 A short term, 5 A continuous,at supply voltage
OUTPUT B (START)
10 A short term, 5 A continuous,at supply voltage
OUTPUTS C & D
2 A DC at supply voltage
AUXILIARY OUTPUTS E,F,G,H
2 A DC at supply voltage

GENERATOR

VOLTAGE RANGE
15 V to 415 V AC (Ph to N)
26 V to 719 V AC (Ph to Ph)
FREQUENCY RANGE
3.5 Hz to 75 Hz

MAGNETIC PICK-UP
VOLTAGE RANGE
+/- 0.5 V to 70 V
FREQUENCY RANGE
10,000 Hz (max)
