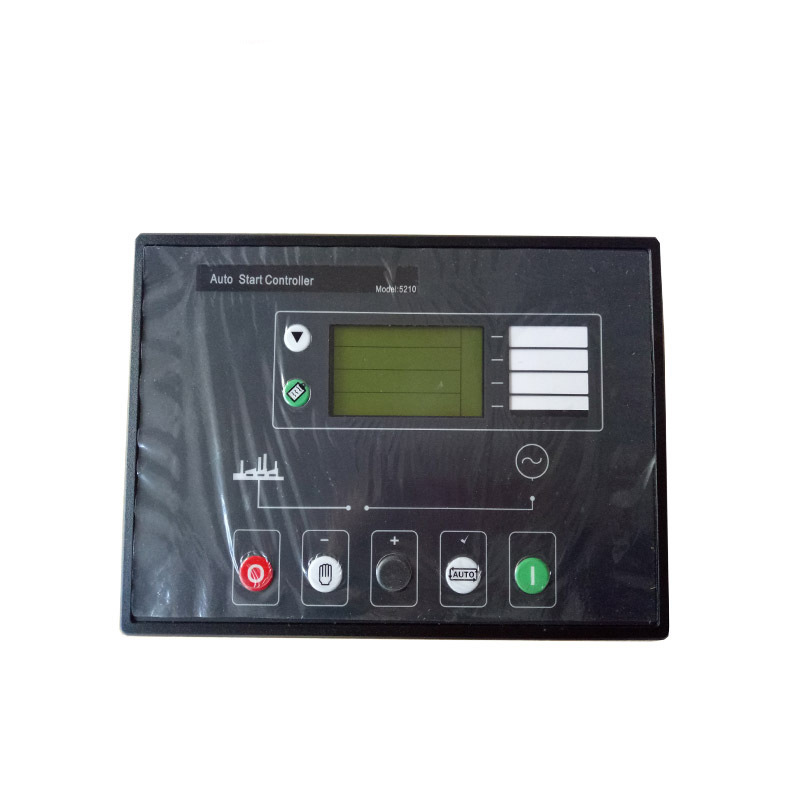

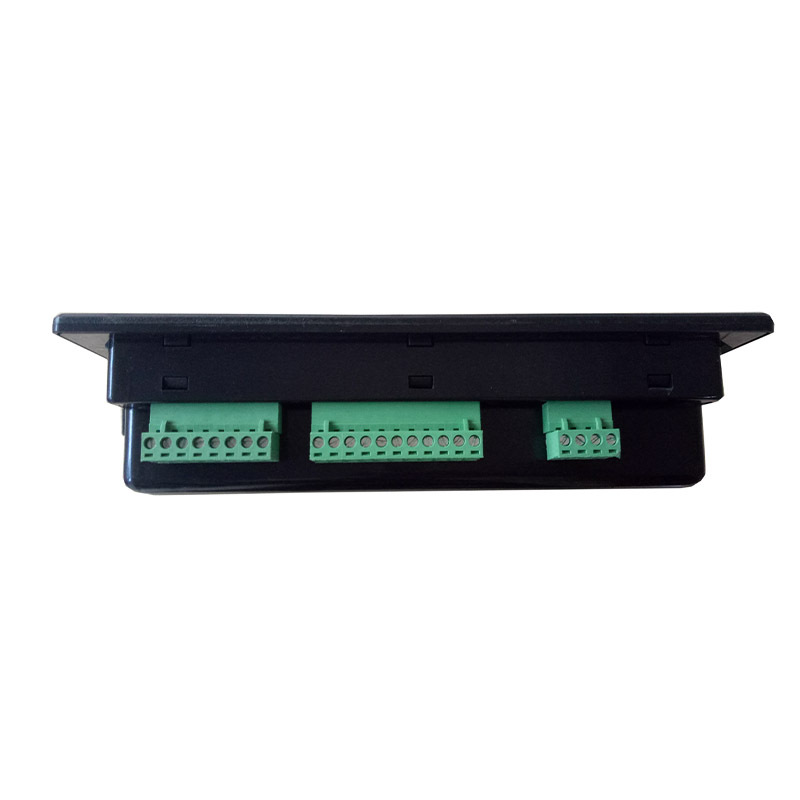

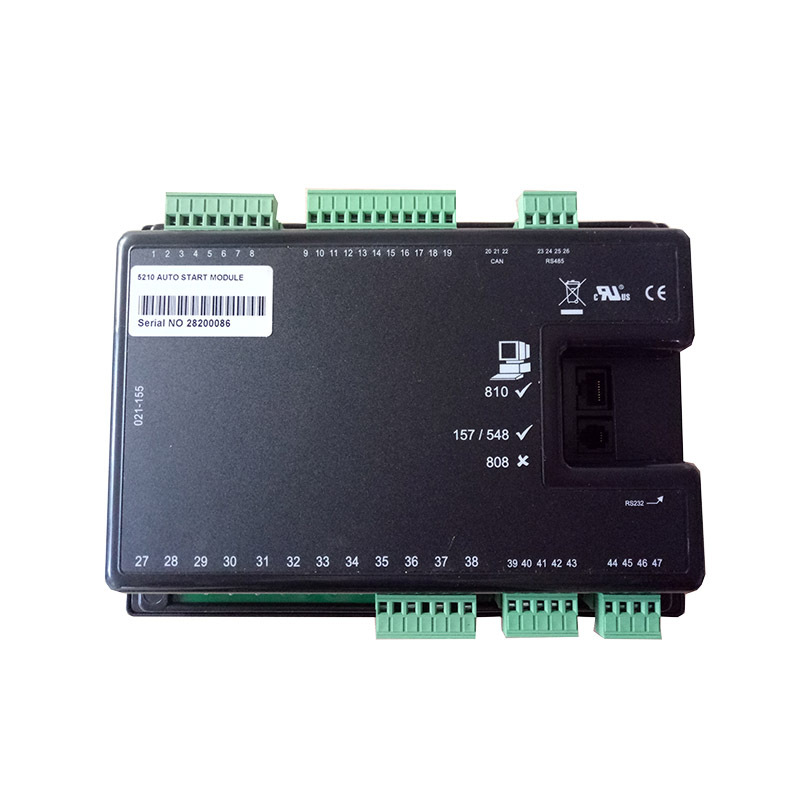

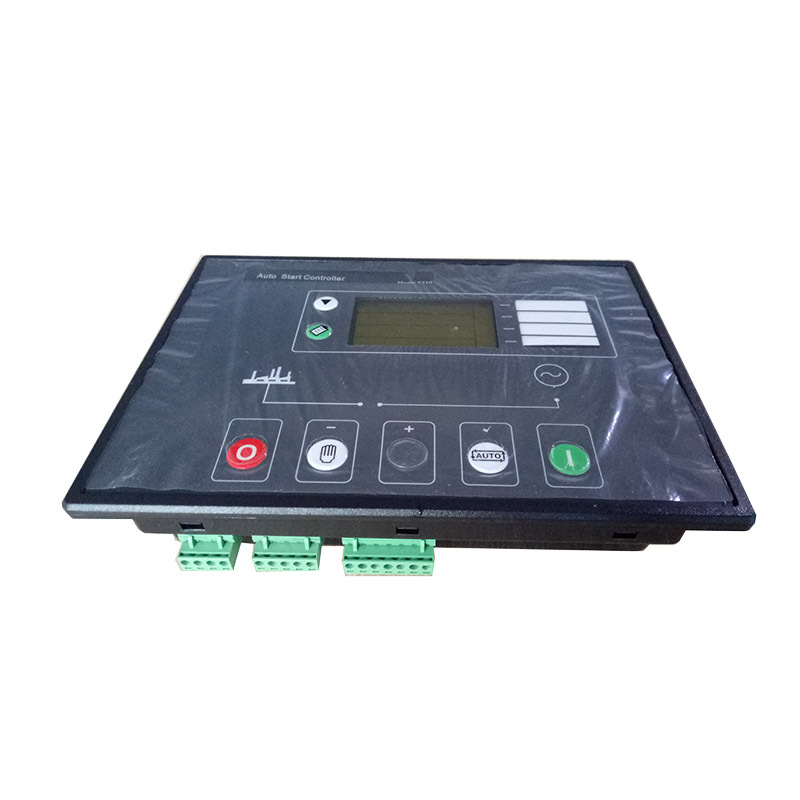

Electrical Genset Generator Controller DSE5210 For Generator Spare Part
Product ID : DSE5210
Product Tags :
Auto Genset Generator ControllerElectronic Auto Start Generator SetGenerator ATS ControllerGenerator Spare PartsGenerator Speed ControllerGenerator parts speed control unitIntelligent Generator Controller AutomaticRemote Monitor ATS AMF Generator controllerSmart Genset Controllerelectronic engine governor control
Product Attributes :
The DSE5210 is an Automatic Start ControlModule that offers an advanced range of engine monitoring and protection features. The module has been designed tomonitor generator frequency, generator volts, generator current, engine oil pressure, engine coolant temperature, engine running hours and battery volts.
Product Description
| Power Supply | 8 to 35 Vdc Continuous |
| Cranking Dropouts: | Able to survive 0 V for 50 mS, providing supply was at least 10 V Before dropout and supply recovers to 5V. |
| Max Current | Operating 425mA at 12 V & 215mA at 24 V; Standby 250 mA at 12 V & 125 mA at 24 V. |
| Start Relay Output: | 16 Amp DC at supply voltage. |
| Fuel Relay Output: | 16 Amp DC at supply voltage. |
| Auxiliary Relay Outputs: | 5 Amp DC at supply voltage. |
| Charge Fail / Excitation Range | 0 V to 35 V |
| Maximum operating current | 320ma at 12V, 215ma at 24v |
| Maximum operating current | 175ma at 12V, 95ma at 24v |
| Alternator Input Range: | 15V(L-N) to 333V AC (L- N) absolute maximum |
| Alternator Input Frequency: | 50 - 60 Hz at rated engine speed (Minimum: 15V AC Ph-N) |
| Magnetic Pick-up Voltage Input Range: | +/- 0.5 V to 70 V Peak |
| Magnetic Input Frequency: | 10,000 Hz (max) at rated engine speed |
| MAINS (UTILITY) SENSING INPUT RANGE | (DSE5220 only) 15V (L-N) to 333V AC (L-N) absolute maximum |
| MAINS(UTILITY)SENSINGINPUTFREQUENCY | (DSE5220 only) 50-60 Hz |
| MAINS (UTILITY) & GENERATOR LOADING RELAY OUTPUT |
(DSE5220 only) 8A AC 250V |
| Generator loading Relay Output: | 8 Amp AC 250V. |
| Mains loading Relay Output: | 8 Amp AC 250V |
| Panel Cutout: | 220mm x 160mm ( 8.7” x 6.3”) |
