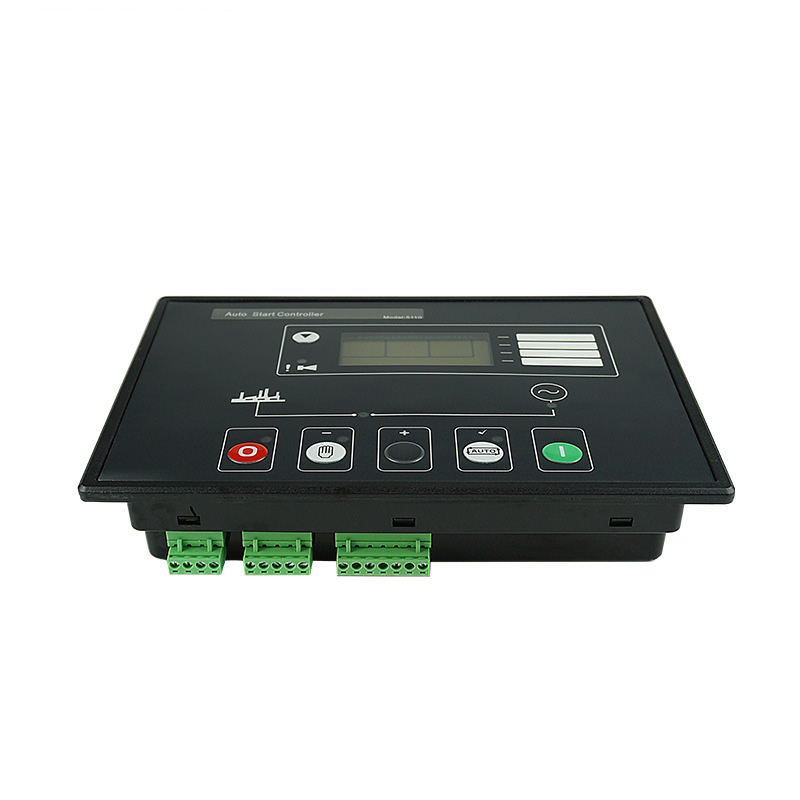

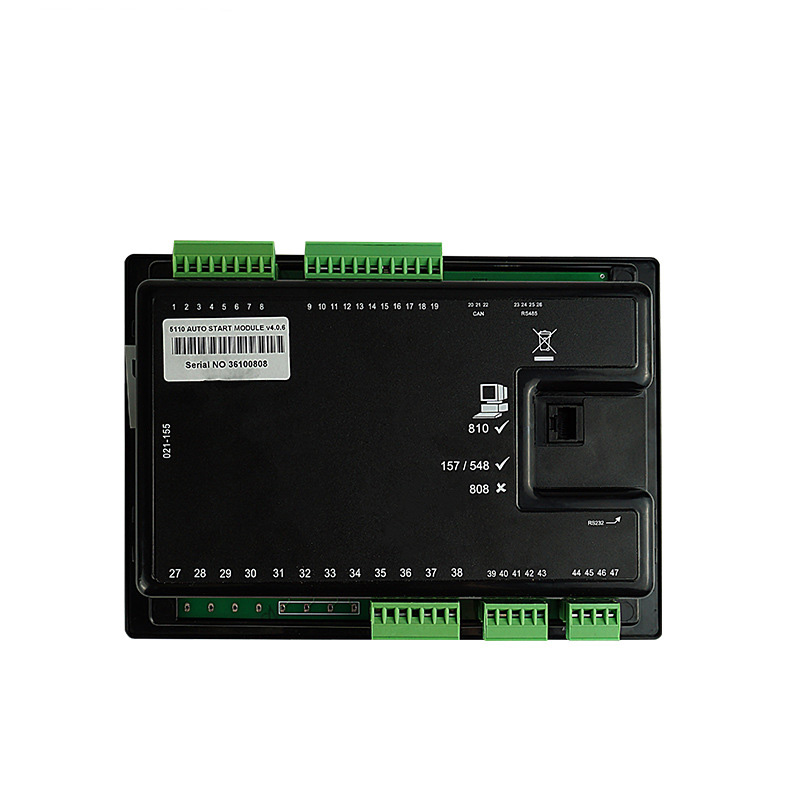

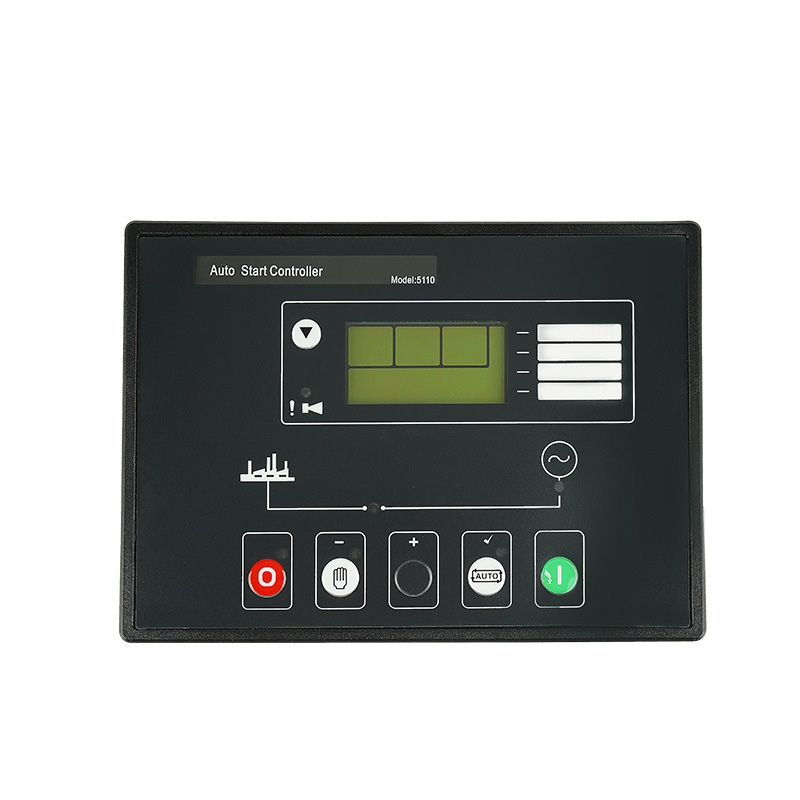

DSE5110 Generator Controller LCD Diesel Genset Auto Start Control Board
The DSE5110 is an Automatic Start Control Module designed to automatically start and stop diesel and gas generating sets that include non electronic engines. The module also provides excellent engine monitoring and protection features. The module has the ability to monitor under speed, over speed, charge failure, emergency stop, low oil pressure, high engine temperature, fail to start, fail to stop and loss of the speed sensing signal. The module displays fault conditions on the LCD display and via the LED indicators on the front.
Specification
Power Supply：8 to 35 Vdc Continuous Cranking Dropouts：Able to survive 0V for 50mS, providing the supply was at least 10V before dropout and supply recovers to 5V Max Operating Current： 320mA at 12V, 215mA at 24V Alternator Input Range：15V (L-N) to 333V AC (L-N) absolute maximum Auxiliary Output：Solid state 2.4A DC at supply voltage. Fuel/Start Output：Solid state 3.4A DC at supply voltage Generator C.T.：5A secondary 0.5VA Operating Temperature Range：-30 to +70°C
