Generator Controller Board Panel Engine Control Module DSE702AS
Product ID : DSE702AS
Product Tags :
Auto Genset Generator ControllerElectronic Auto Start Generator SetGenerator ATS ControllerGenerator Spare PartsGenerator Speed ControllerGenerator parts speed control unitIntelligent Generator Controller AutomaticRemote Monitor ATS AMF Generator controllerSmart Genset Controllerelectronic engine governor control
Product Attributes :

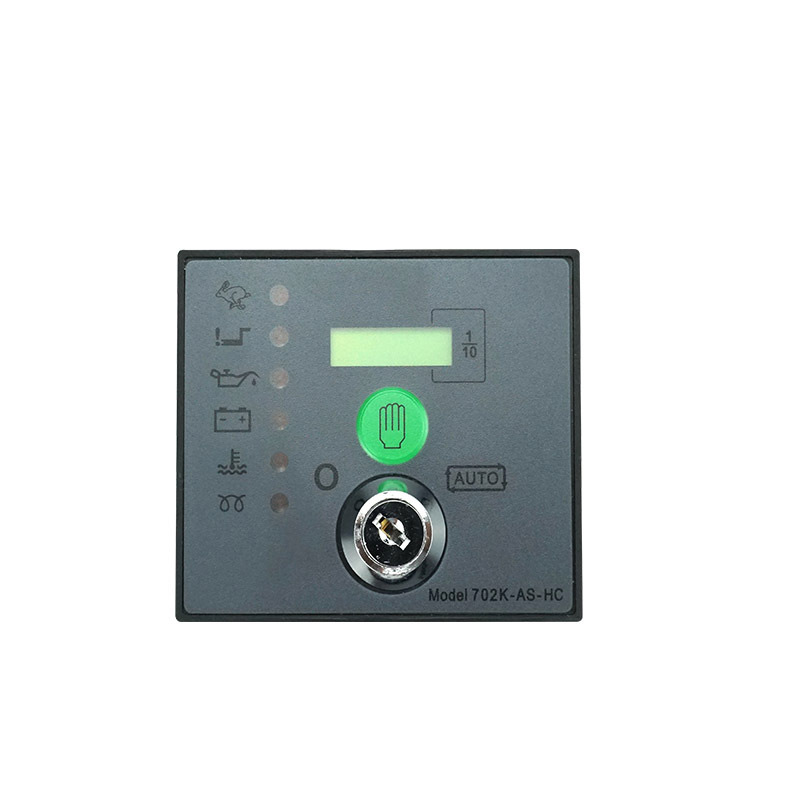

The model 701/702 is an Engine control module designed to control the engine via a key switch and pushbuttons on the front panel.The module is used to start and stop the engine and indicate fault conditions,automatically shutting down the engine and indicating the cause of failure by LED,giving true,first up fault annunciation. Additionally, the Autostart versions of the controller will respond to a remote switched input to begin the start sequence. Model 702 has integral tamperproof LCD hours run counter to indicate total engine run time.
Product Description
| Power Supply | 8 to 35 V dc Continuous |
| Cranking Dropouts: | Able to survive voltage dips during cranking. Without the need for internal batteries. |
| Voltage Range | 15 - 355 V AC (L-N) |
| Frequency Range | 3.5Hz to 75Hz |
| Maximun Operating Current | 26 mA at 12 V, 27 mA at 24 V |
| Maximun Standby Current | 20 mA at 12 V, 21 mA at 24 V |
| Charge Exitation Range | 0V to 35V |
| Operating Temperature Range: | -30 to +70°C |
