HOME PRODUCT Generator Controller Deepsea Series Generator Controller Automatic Start Control Module DSE 7220

PRODUCT

Generator Controller Automatic Start Control Module DSE 7220
Generator Controller Automatic Start Control Module DSE 7220 Generator Controller Automatic Start Control Module DSE 7220 Generator Controller Automatic Start Control Module DSE 7220 Generator Controller Automatic Start Control Module DSE 7220

Generator Controller Automatic Start Control Module DSE 7220

Product ID : DSE 7220
Product Tags : Auto Genset Generator ControllerElectronic Auto Start Generator SetGenerator ATS ControllerGenerator Spare PartsGenerator Speed ControllerGenerator parts speed control unitIntelligent Generator Controller AutomaticRemote Monitor ATS AMF Generator controllerSmart Genset Controllerelectronic engine governor control
Product Attributes :

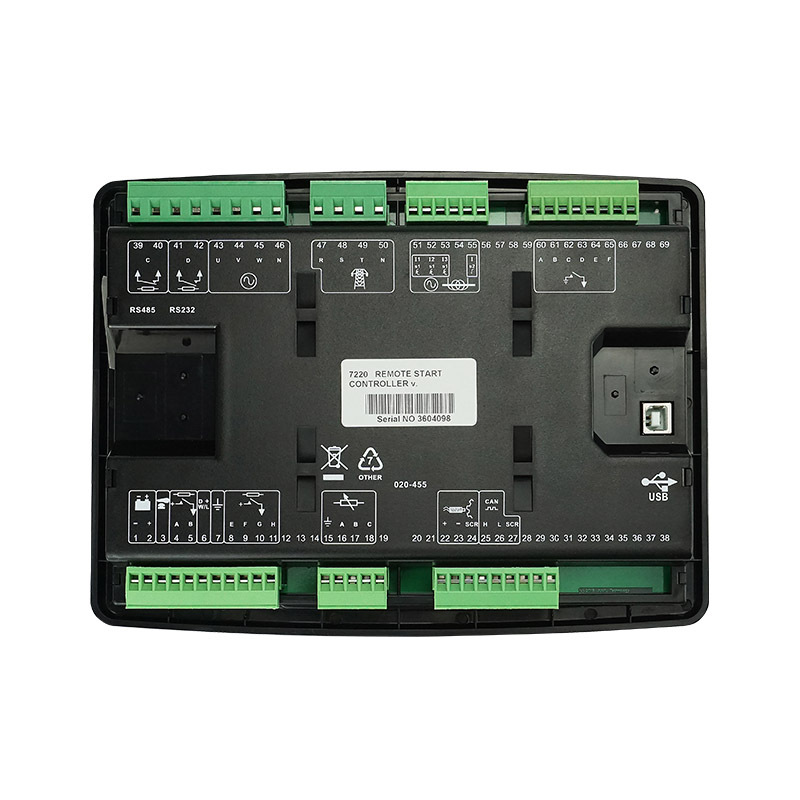

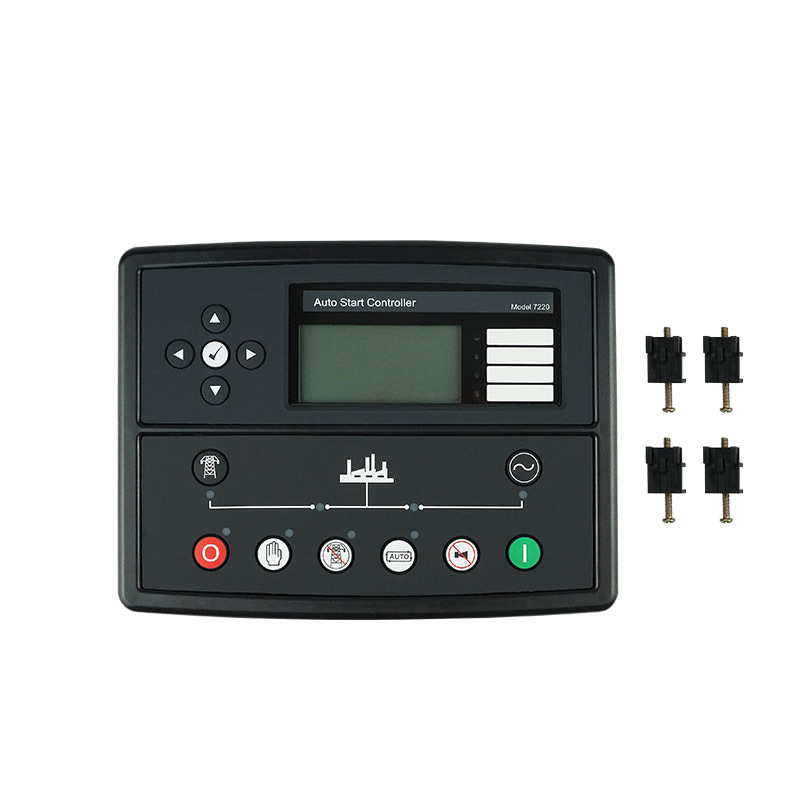

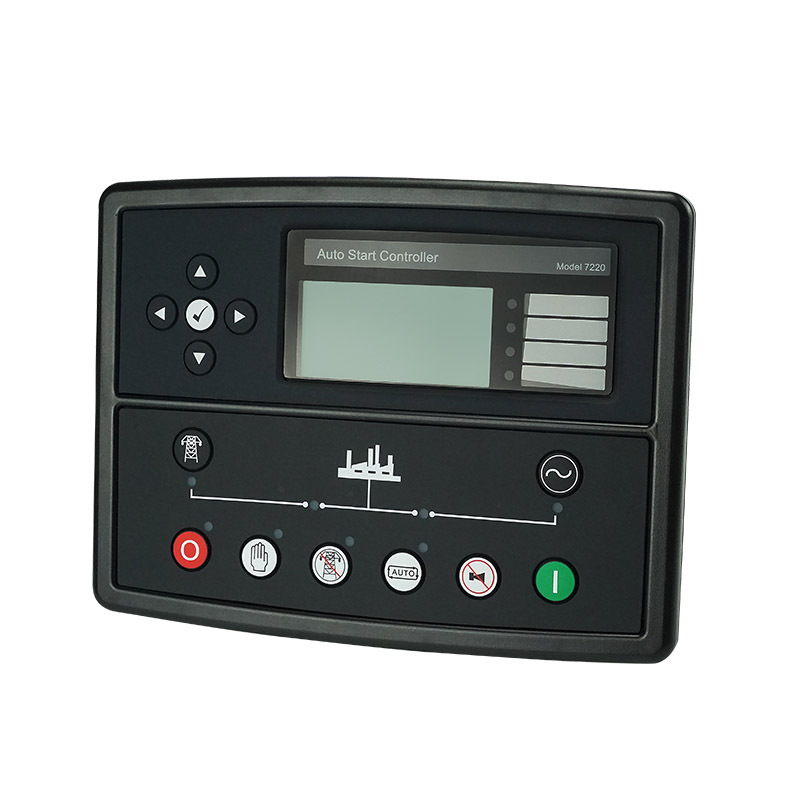

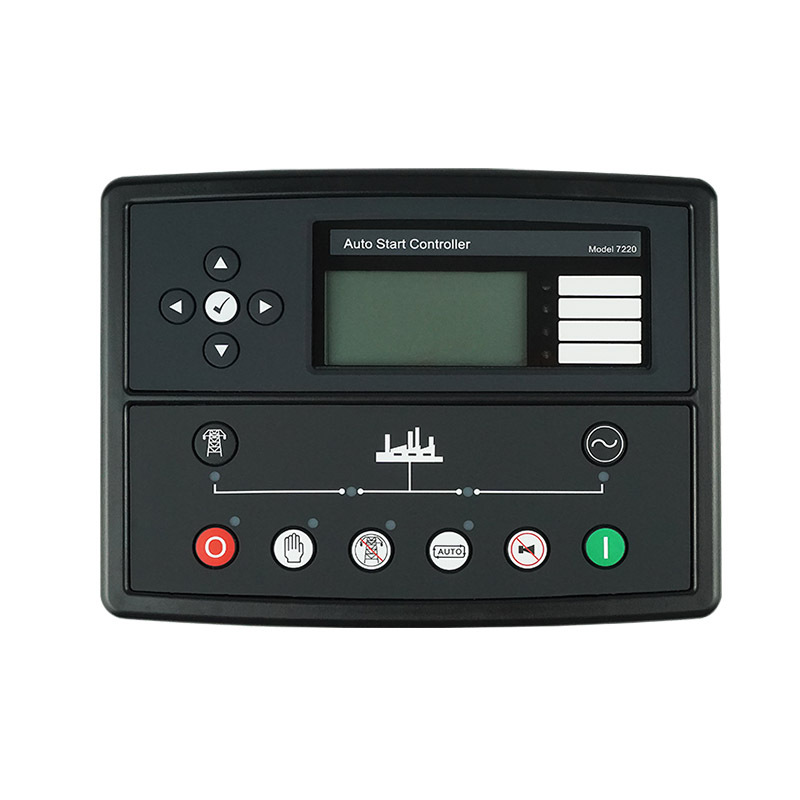

The DSE 7220 Genset Controller is an Auto Start Control Module and the Deep Sea DSE7220 Genset Controller is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.

Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LEDs. The DSE DSE7220 Genset Controller will also monitor the mains (utility) supply.

Product Description
 Auto Mains Failure control module DSE7220
DEEP SEA AUTO MAINS FAILURE CONTROL MODULE DSE7220
8V to 35V continuous
Cranking dropouts
able to survive 0V for 50mS
Maximum operating current
340mA at 12V,160mA at 24V
Maximum standby current
160mA at 12V ,80mA at 24V
Maximum sleep current
0-35V
Output (fuel / start )
15 A short term,5A continuous ,at supply voltage
Auxiliary outputs
2 A DC at supply voltage
Generator voltage range
15 V to 333 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph)
Generator frequency range
3.5 Hz to 75 Hz
Mains (utility) only voltage range
15V to 333 V AC(ph to N)
Overall size
240mm*181mm*42mm
Panel cut-out dimensions
220mm*160mm
Maximum panel thickness
8mm
