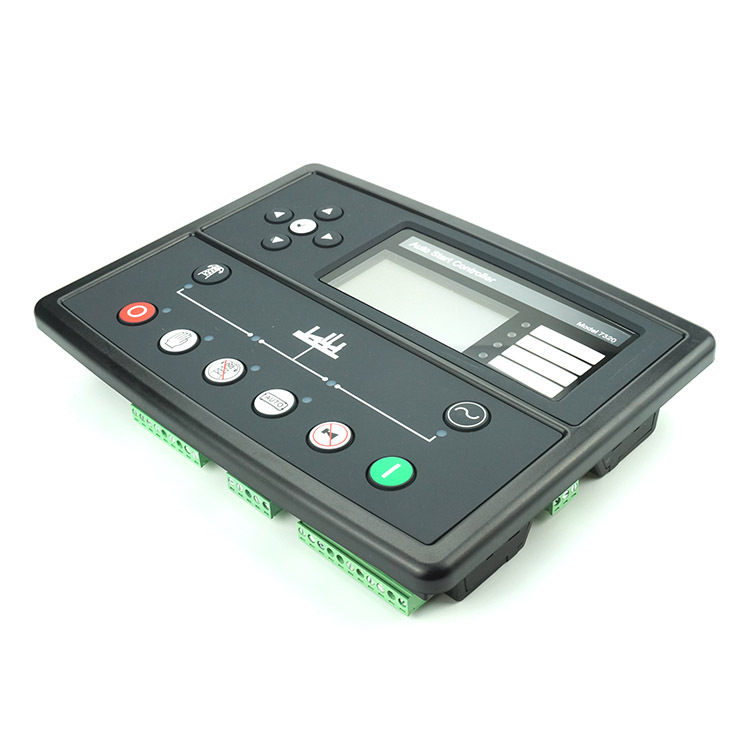

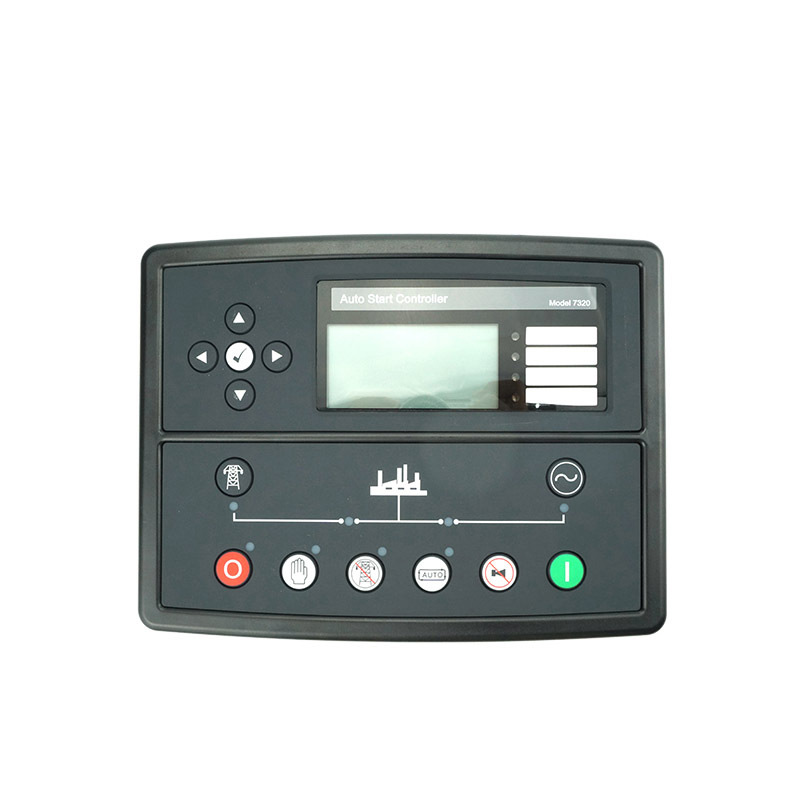

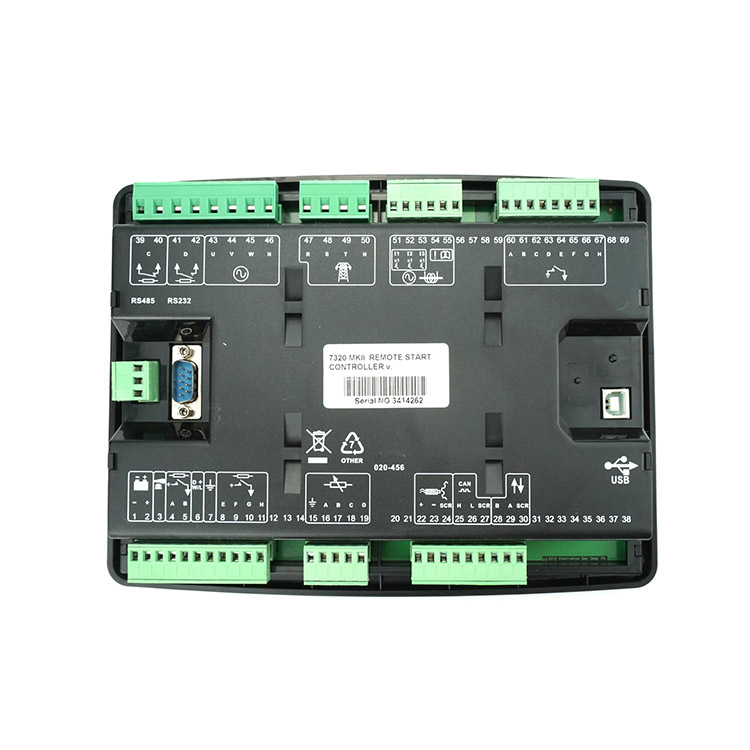

Generator spare parts ats controller genset engine DSE7320
Generator spare parts ats controller genset engine DSE7320 Generator spare parts ats controller genset engine DSE7320 Generator spare parts ats controller genset engine DSE7320

Generator spare parts ats controller genset engine DSE7320

Product ID : DSE 7320
Product Attributes :

Generator AMF ATS Controller DSE 7320 can completely replace with it. It has the function of auto mains (utility) failure control modules monitor incoming mains (utility) supplies and instruct gen-sets to start when mains (utility) power is not available. All modules include a range of intelligent control, monitoring and protection features for standard and electronic engine gen-set applications.

Product Description
Specification
Working voltage
DC9V----36V Continuous

Power consumption
Standby：24V：MAX1W
Working：24V：MAX7W

AC Voltage Input
1P2W 30VAC-276VAC(ph-N）
2P3W 30VAC-276VAC(ph-N)
3P4W 30VAC-276VAC(ph-N)
Rotate speed sensor Frequency
200-10000Hz
MAX AccumulatingTime
99999.9Hours（MinStoretime:6min）
Fuel Relay Output
Max 16Amp DC+VE Supply voltage
Switch value input
Available if connecting with Battery-
Working condition
-25-65℃
Over all dimension
241mm*177mm*45mm
