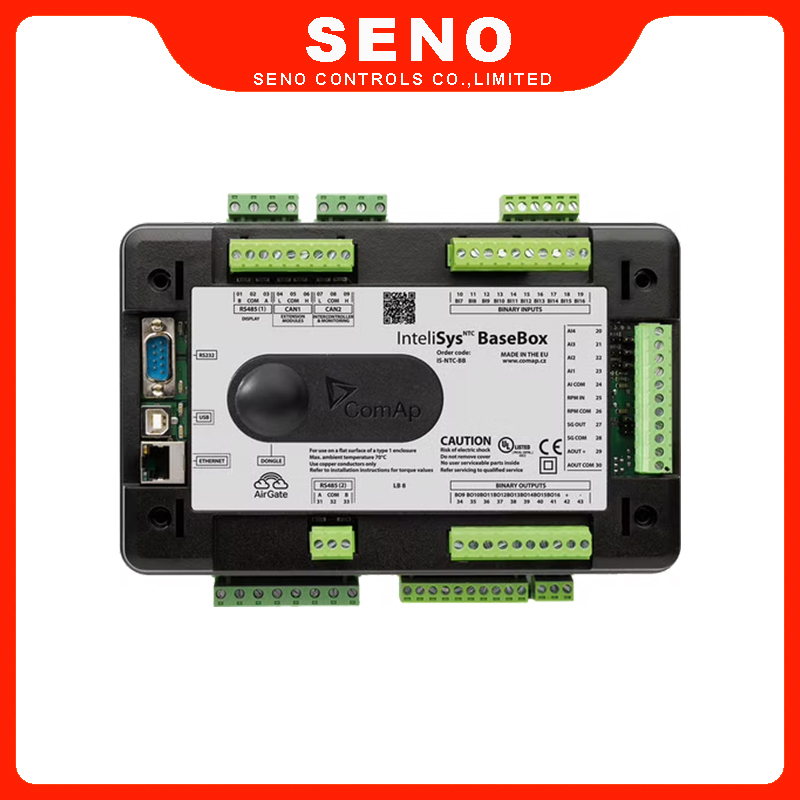

ComAp controller InteliSys NTC BaseBox GeCon Marine IS-NTC-BB

InteliSys NTC BaseBox GeCon Marine is a comprehensive gen-set and generator controller intended for marine applications. Designed with broad communication and PLC capabilities, this product will ensure efficient and secure control and monitoring of your gen-sets, including varispeed, shaft generators for PTI/PTO, batteries, fuel cells, and shore connection.

The InteliSys NTC BaseBox GeCon Marine offers:

• Main functions: AMF function, Baseload, Import / Export, Peak shaving, Voltage and PF control (AVR)
• Easily configurable analogue and binary I/Os to suit every application requirement and adjust the number of expansion models used to optimise operations and costs
• Support for both ECU and mechanical engines
• Comprehensive overview of all measured data
• Event-based history for easy troubleshooting and performance analysis
• Intuitive and secure local and remote monitoring with a range of ComAp displays, PC tools and web-based services
• Easy and cost-effective operations with signal sharing over a CAN bus
• Broad communication capabilities including Ethernet connection (RJ45), USB 2.0, RS232/ RS485 interface with Modbus protocol support; Analog / GSM / ISDN / CDMA modem communication support; SMS messages; ECU Modbus interface; isolated secondary RS485
• AirGate 2.0 technology for easy connection to your equipment remotely, without worrying for about your asset’s IP address
• Automatic synchronisation and power control via speed governor or ECU
• Measurement of both generator and mains side
• Configurable inputs and outputs enabling customers to design functions according to their various needs
• Bi-polar binary outputs
• Controller redundancy minimising solution downtime and ensuring the power isn’t compromised
• Integrated PLC programmable functions
• Embedded fixed and configurable generator protection
• Easy customisation of the firmware solution according to your requirements
• Recommended to use with external colour displays InteliVision 8 or Intelivistion 5
• The controller has been certified by the following marine organisations: DNV, LR, ABS, BV, RINA, CRS, CCS
