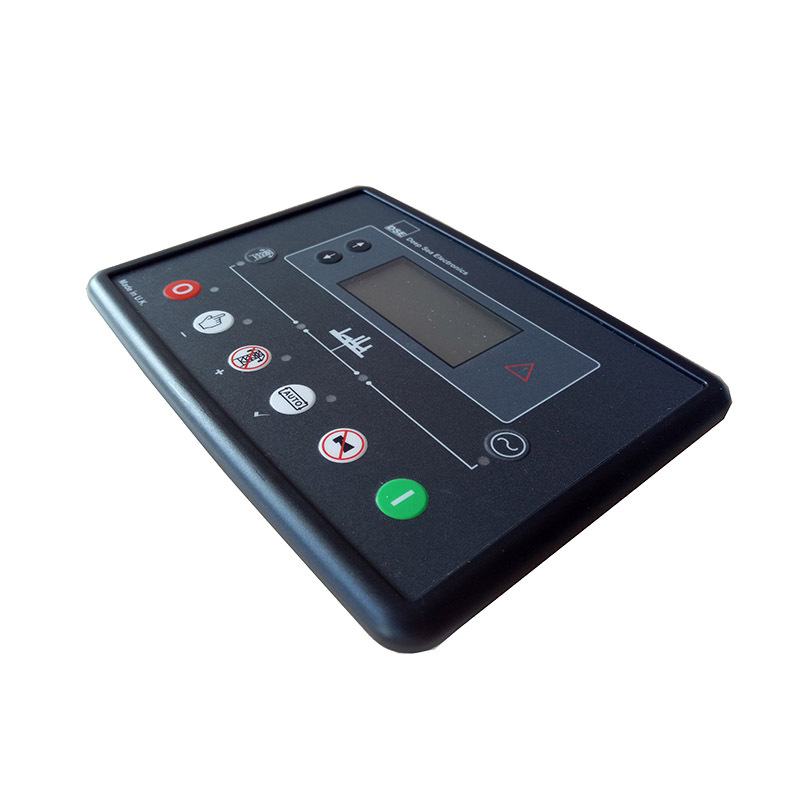

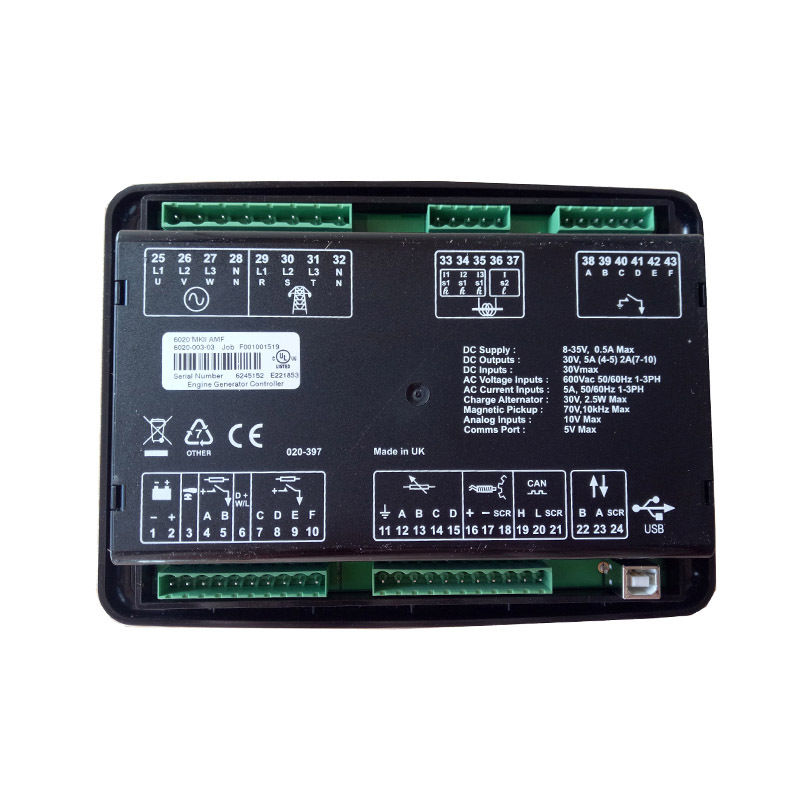

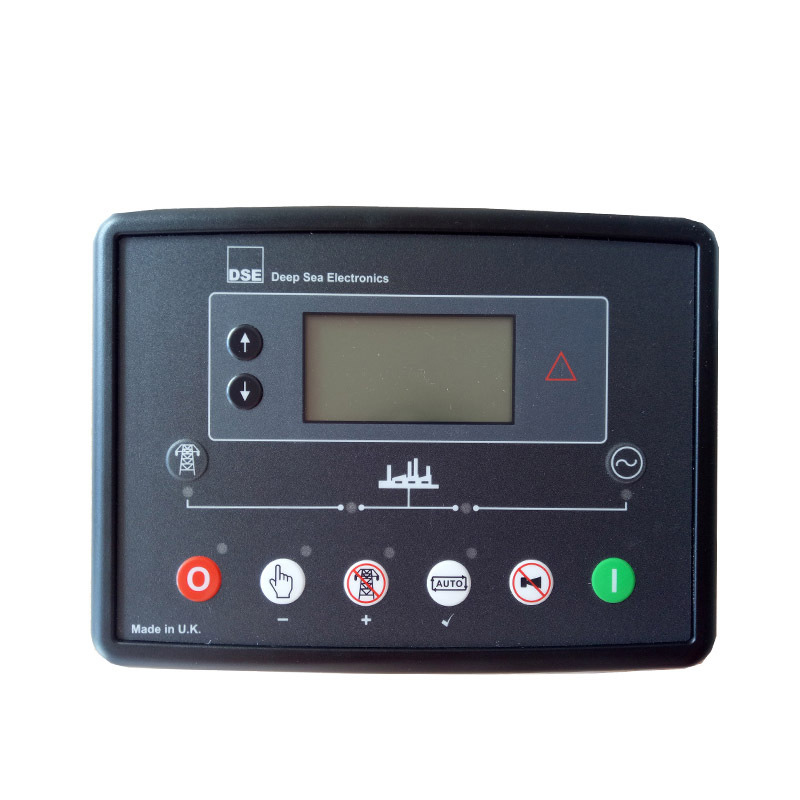

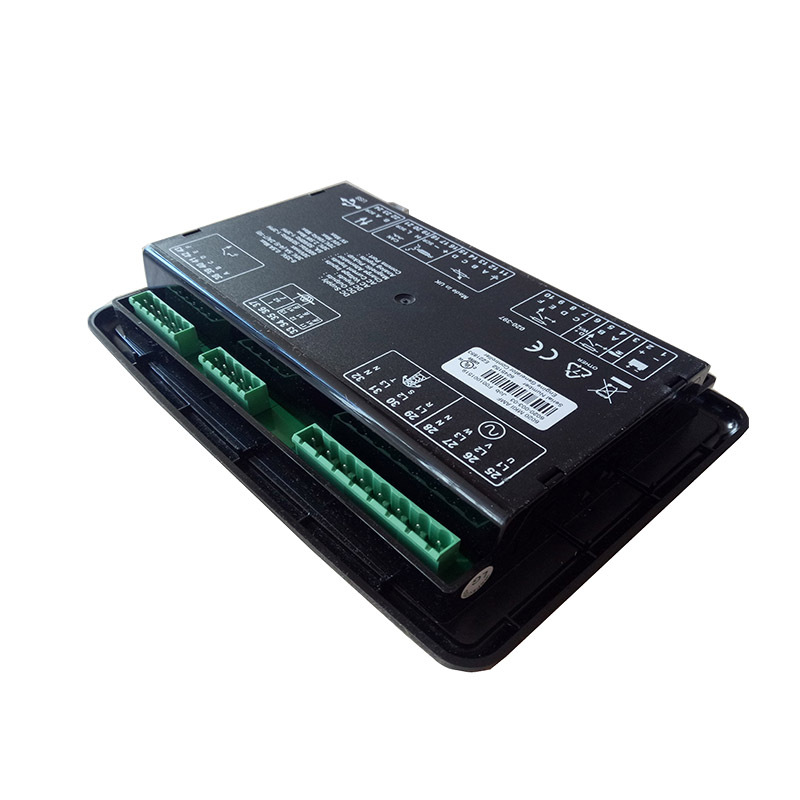

DSE6020 MKII DSE6020MK2 generator Controller Genset Control Panel Module
DSE6020 MKII DSE6020MK2 generator Controller Genset Control Panel Module DSE6020 MKII DSE6020MK2 generator Controller Genset Control Panel Module DSE6020 MKII DSE6020MK2 generator Controller Genset Control Panel Module DSE6020 MKII DSE6020MK2 generator Controller Genset Control Panel Module

DSE6020 MKII DSE6020MK2 generator Controller Genset Control Panel Module

Product ID : DSE6020
Product Attributes :

DSE 6020 has been added mains electricity monitoring function. It is used to control engine which have or do not have electrically operated injector,and also fuel gas engines, providing advanced engine testing and protection functions.

Product Description
Specification
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
FREQUENCY RANGE
3.5 Hz to 75 Hz
MAXIMUM OPERATING CURRENT
100 mA at 12 V, 105 mA at 24 V
OVERALL DIMENSIONS
216 mm x 158 mm x 43 mm
PANEL CUT-OUT
184 mm x 137 mm
OPERATING TEMPERATURE RANGE
-40 °C to +70 °C
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved
without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
