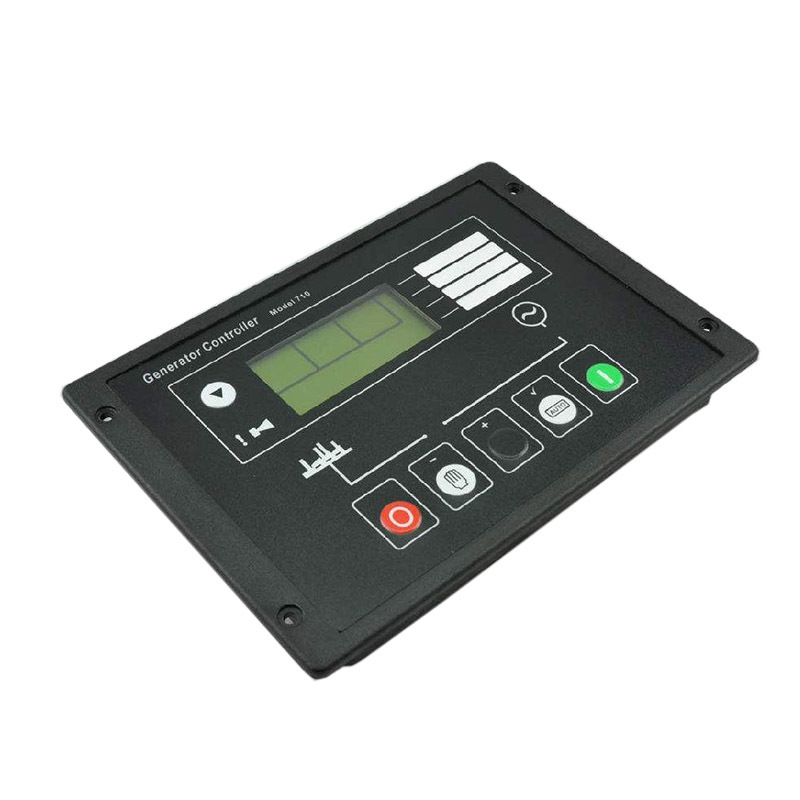

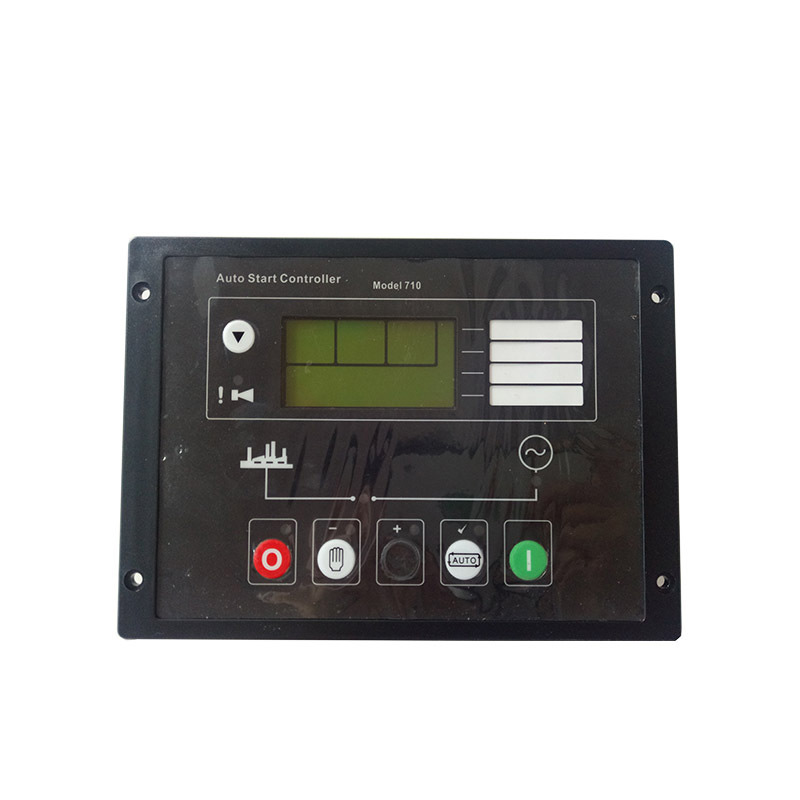

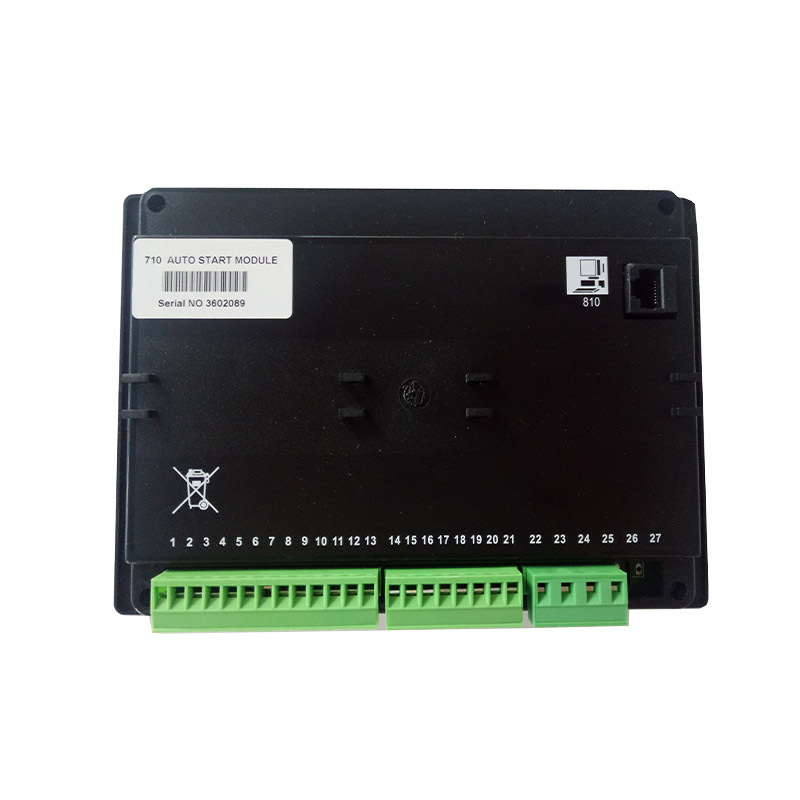

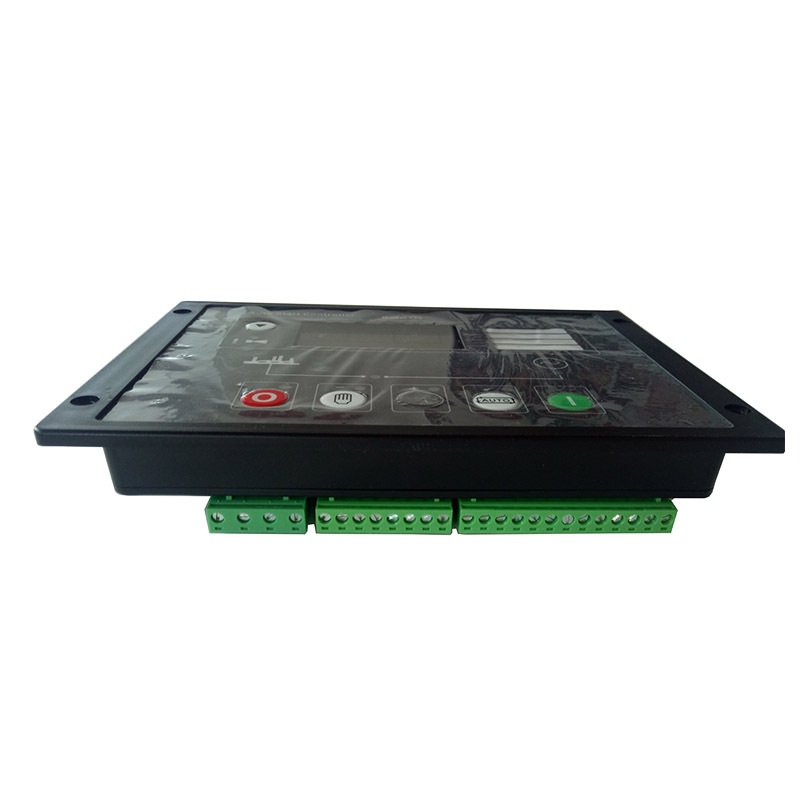

DSE710 Auto Start Control Module diesel generator parts electronic controller board LCD display genset monitors
Key Features
• PC/Front panel configuration • Digital and analogue inputs • Digital outputs • Automatic mains (utility) supply monitoring (DSE720 only) • Automatic shutdown or warning when fault conditions are detected • Automatic/Manual/Remote start • Engine pre-heat • Engine monitoring and protection features • Protected Solid State (PSS)outputs • Tamper-proof engine hours counter • LED indicators • Configurable timers • Configurable outputs • Configurable inputs • Back-lit character/icon LCD display
Specification
Power Supply：8 to 35 Vdc Continuous Cranking Dropouts：Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5V. This is achieved without the need for internal batteries. Max Operating Current： 180mA at 12V, 190mA at 24V ; Standby 145mA at 12V. 150mA at 24V Alternator Input Range：35V(L-N) to 277V(L-N) AC (+20%) 50Hz - 60Hz (min 15V AC) Auxiliary Output：Solid state 2.4A DC at supply voltage. Fuel/Start Output：Solid state 3.4A DC at supply voltage Generator C.T.：5A secondary 0.5VA Operating Temperature Range：-30 to +70°C
